UniFi G5 Turret Ultra (UVC-G5-Turret-Ultra)

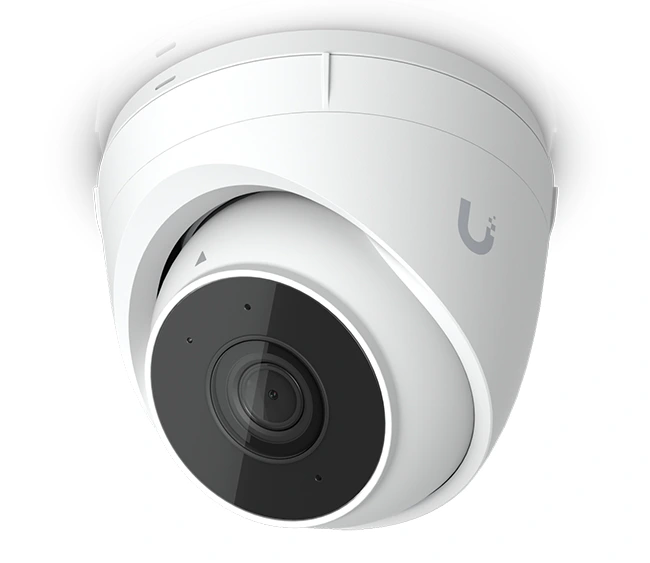

The Ubiquiti UniFi Protect G5 Turret Ultra (model UVC-G5-Turret-Ultra) is a compact, tamper-resistant 2K HD PoE camera designed for both indoor and outdoor surveillance. The UVC-G5-Turret-Ultra is designed for both indoor and outdoor environments, offering high-quality video surveillance with a wide field of view, night vision, and weather-resistant capabilities. It is well-suited for use in security systems for both homes and businesses.

---

Mechanical Specifications

• Dimensions: Ø92.0 x 84.0 mm (Ø3.62 x 3.31")
• Weight: 220 g (7.8 oz)
• Mounting: Surface mount included (optional flush mount available)
• Enclosure Material: Polycarbonate and aluminum alloy
• Weather Resistance: IP66-rated for outdoor use (dust-tight and resistant to heavy rain)
• Impact Resistance: IK04 (light protection from impact)
• Tamper Resistance: Yes

---

Optics & Video

• Sensor: 1/2.4" CMOS image sensor
• Lens: Fixed focal length
• Resolution: 4MP (2688 x 1512)
• Field of View:
  • Horizontal: 102.4°
  • Vertical: 54.9°
  • Diagonal: 120.6°
• IR Illumination: Built-in infrared (IR) LEDs with a range of up to 30 meters (98 feet)
• Night Vision: Yes, with IR cut filter and automatic switching
• Max Frame Rate: 30 frames per second (FPS)
• Wide Dynamic Range (WDR): Yes, for improved image quality in varying lighting conditions
• Image Adjustments: Adjustable settings for brightness, contrast, exposure control, white balance, and sharpness

---

Audio

• Integrated Microphone: Yes, with the ability to disable it via software if desired
• Two-Way Audio: Supported, allowing for communication through the camera (via software interface)

---

Networking & Power

• Networking Interface: 10/100/1000 Ethernet (Gigabit)
• Power Method: Power over Ethernet (PoE) - 37V to 57V DC
• Power Consumption: Maximum 4W (operational)
• Ethernet Cable Length: Recommended max. 100 meters (328 feet) using CAT5e or higher

---

Environmental & Certifications

• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Operating Humidity: 10% to 90% non-condensing
• Certifications: FCC, IC, CE, RoHS

---

Software & Integration

• Software:
  • UniFi Protect for device configuration and management
  • Mobile App: Available for both iOS and Android devices, for remote viewing and management
  • Web Interface: Accessible through a browser for configuration and management
• Integration: Works seamlessly with UniFi Protect ecosystem, including other UniFi cameras, NVRs, and the UniFi Cloud Key

---

Mounting Options

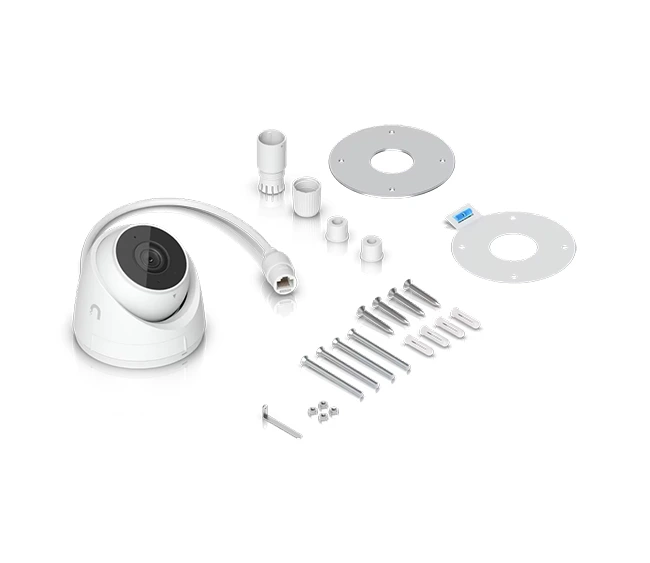

• Surface Mount: Included in the box
• Flush Mount: Available as an optional accessory for a more discreet installation
• Wall/Ceiling Mount: Flexible mounting options for both wall and ceiling installations

---

UniFi G5 Turret Ultra - Tech Specs
