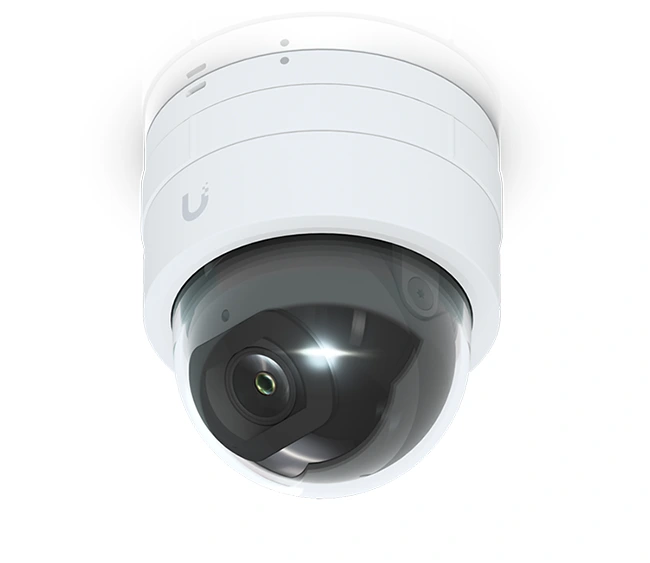

UniFi G5 Dome Ultra (UVC-G5-Dome-Ultra)

  The Ubiquiti UniFi Protect G5 Dome Ultra (model UVC-G5-Dome-Ultra) is a compact, tamper-resistant 2K HD PoE camera designed for low-profile indoor security. It offers advanced features suitable for both residential and commercial surveillance needs.

---

📐 Mechanical Specifications

• Dimensions: Ø63.6 x 68.2 mm (Ø2.5 x 2.7")
• Weight: 175 g (6.2 oz)
• Enclosure Material: Aluminum alloy, polycarbonate
• Mount Material: Stainless steel
• Tamper Resistance: IK06

---

🔍 Optics & Video

• Sensor: 1/2.4" CMOS
• Lens: Fixed focal length
• Resolution: 4MP (2688 x 1512, 16:9)
• Field of View:
  • Horizontal: 102.4°
  • Vertical: 54.9°
  • Diagonal: 120.6°
• Night Mode: Built-in IR LED illumination with IR cut filter
• IR Distance: Up to 20 m (65 ft)
• Max Frame Rate: 30 FPS
• Image Settings: Adjustable color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, noise reduction by motion, masking, and text overlay

---

⚙️ System & Power

• Processor: Dual-core Arm® Cortex®-A7
• Networking Interface: 10/100 MbE RJ45 port
• Power Method: PoE (37–57V DC)
• Max Power Consumption: 4.2W

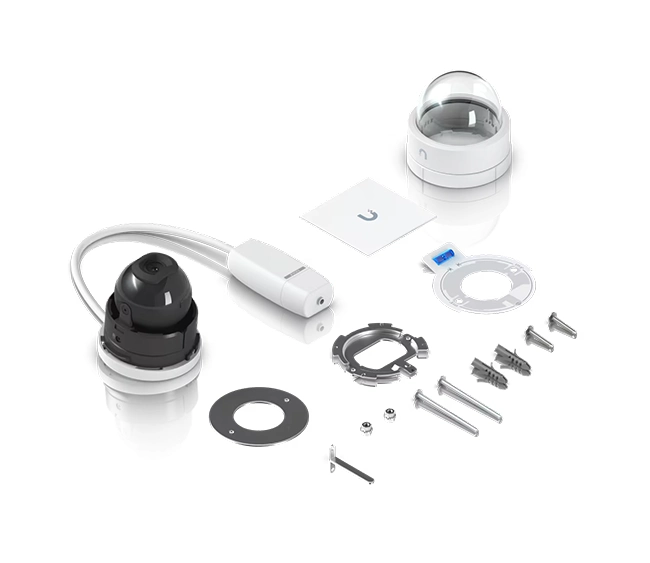

• Mounting: Surface mount included; optional junction box and ultra flush mount
• Button: Factory reset

---

🌡️ Environmental & Certifications

• Operating Temperature: -20 to 40°C (-4 to 104°F)
• Operating Humidity: 10 to 90% non-condensing
• Certifications: FCC, IC, CE

---

📱 Software & Integration

• Web Application: UniFi Protect
• Mobile App: UniFi Protect for iOS™ and Android™

---

For more detailed information and official documentation, you can visit the UniFi G5 Dome Ultra Tech Specs page.

---
