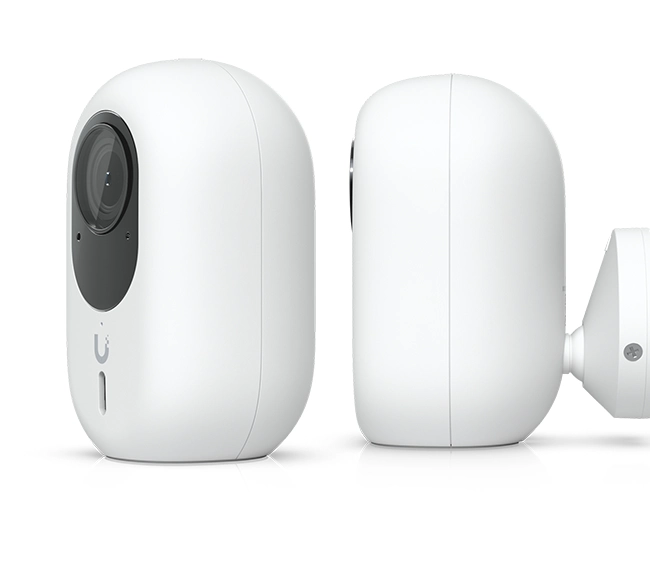

UniFi G4 Instant (UVC-G4-INS)

The Ubiquiti UniFi Protect G4 Instant (model UVC-G4-INS-EU) is a compact, plug-and-play WiFi camera designed for both indoor and outdoor surveillance. It offers high-resolution video, two-way audio, and robust weatherproofing, making it suitable for various security applications. Here are the detailed specifications for the Ubiquiti UniFi Protect G4 Instant (UVC-G4-INS-EU):

---

📸 Camera & Optics

• Image Sensor: 1/2.7" CMOS sensor
• Lens: Fixed focal length 2.8 mm, f/1.6
• Aperture: f/1.6 (low-light optimized)
• Resolution: 5MP (2688 x 1512)
• Field of View:
  • Horizontal: 102.4°
  • Vertical: 54.9°
  • Diagonal: 120.6°
• IR Night Vision: Built-in infrared LED illumination with IR cut filter for clear night-time footage (up to ~10m)
• WDR (Wide Dynamic Range): Yes, for better contrast in varied lighting
• Max Frame Rate: 30 FPS

---

🔊 Audio

• Microphone: Integrated, supports ambient audio recording
• Speaker: Built-in speaker for 2-way audio
• Audio Control: Both mic and speaker can be disabled via UniFi Protect software

---

🌐 Networking & Connectivity

• Wi-Fi: Dual-band 802.11 a/b/g/n/ac (2.4 GHz & 5 GHz)
• Bluetooth: For easy setup and pairing
• Ethernet Port: None (WiFi-only)
• Data Encryption: WPA2-AES encryption supported through UniFi Protect

---

⚡ Power & Consumption

• Power Input: 5V DC, 2A via USB-C (power adapter included)
• Power Consumption: Max 6W

---

🛡️ Environmental & Build

• Weather Resistance: IPX5-rated (protection from water jets – suitable for outdoor use)
• Impact Resistance: IK04 (resistance to light mechanical impact)
• Operating Temperature: -20°C to 40°C (-4°F to 104°F)
• Operating Humidity: 10% to 90% non-condensing
• Enclosure Material: Polycarbonate body

---

📐 Physical

• Dimensions (without mount): 81.6 x 50 x 47.2 mm (3.21 x 1.97 x 1.86")
• Weight:
  • 125 g (4.41 oz) without mount
  • 163 g (5.75 oz) with wall mount

---

🔧 Installation

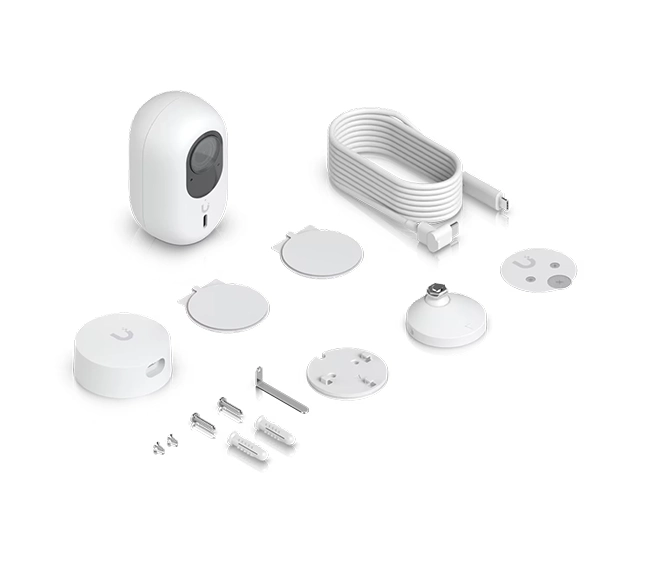

• Mounting Options: Wall mount included (quick, tool-less installation with ball-joint adjustment)
• Indoor/Outdoor: Both supported, though best used under cover outdoors due to IPX5 rating

---

📱 Software & Integration

• Management Software: UniFi Protect (via UniFi Dream Machine Pro, Cloud Key Gen2+, or UniFi NVR)
• Mobile App: UniFi Protect App for iOS and Android
• Cloud Access: Available via UniFi Cloud or Remote Access Portal
• Video Storage: Requires UniFi OS Console with local storage

---

✅ Certifications

• Certifications: FCC, IC, CE
• Region Model: "EU" variant supports EU power standards and regulatory compliance

---

This compact camera is ideal for quick deployments where wiring is a challenge, offering solid performance with WiFi, two-way audio, and UniFi Protect support. Datasheet
