Ubiquiti UniFi USW Pro Max 16 Switch (PoE & Non-PoE)

Here are the detailed specifications for the UniFi USW‑Pro‑Max‑16 (non‑PoE model) and its enhanced PoE version (USW‑Pro‑Max‑16‑PoE):

---

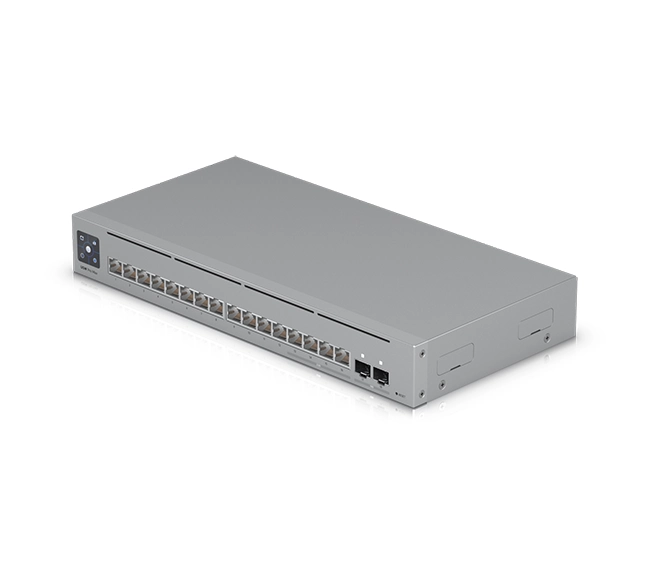

🔌 USW‑Pro‑Max‑16 (non‑PoE)

• Ports
  • 12 × 1 GbE RJ45
  • 4 × 2.5 GbE RJ45
  • 2 × 10 GbE SFP+
• Performance
  • Switching capacity: 84 Gbps
  • Non‑blocking throughput: 42 Gbps
  • Forwarding rate: ~62 Mpps
• Layer 3 Features
  • Static & inter‑VLAN routing, DHCP server/relay
  • IPv4 routes: 512; ARP entries: 6 000
  • Access lists, QoS, 802.1X, IGMP snooping, STP/RSTP, LACP, jumbo frames, etc.
• Hardware
  • 1.3″ touchscreen for status and navigation
  • Fanless design, Etherlighting™ per port
  • Form factors: desktop, wall‑mount, 1U rack
• Power & Dimensions
  • Power: USB‑C 5 V ⎓ 5 A (external 25 W adapter)
  • Typical draw: 25 W (85 BTU/hr)
  • Size: 325 × 160 × 43.7 mm • Weight: ~1.95 kg
• Environmental & Compliance
  • Operating temp: –5 °C to 40 °C; humidity: 10–90% non‑condensing
  • Certifications: CE, FCC, IC, Anatel; NDAA compliant
• Management
  • Requires UniFi Network 8.1.127+

---

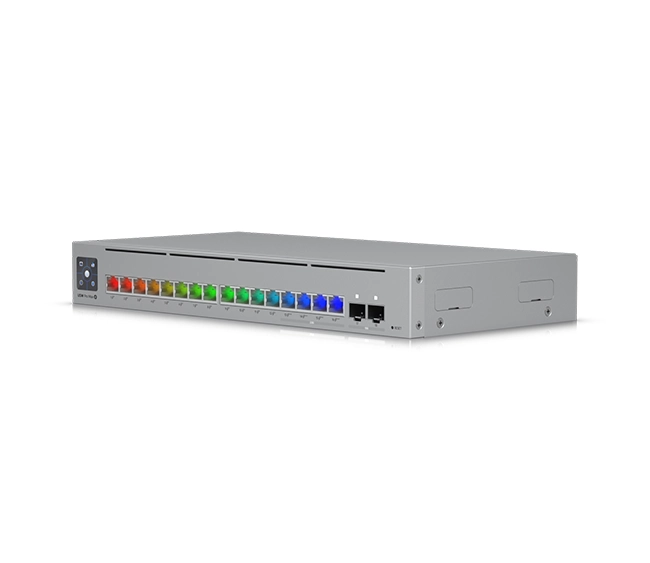

⚡ USW‑Pro‑Max‑16‑PoE (PoE++ version)

Adds full PoE support to ports.

• Port Setup
  • 12 × GbE RJ45 (PoE/PoE+ support)
  • 4 × 2.5 GbE RJ45 (PoE++ support)
  • 2 × 10 GbE SFP+
• PoE Specs
  • Total PoE budget: 180 W
  • PoE+: up to 32 W per port
  • PoE++: up to 64 W per port; PoE: 15.4 W
• Performance & Features
  • Identical performance (84 Gbps / 42 Gbps / 62 Mpps) and L2/L3 capabilities
• Power Supply
  • Powered by external 210 W AC/DC adapter (50–54 V DC supply)
  • Power consumption: ~25 W (excl. PoE); 210 W (incl. PoE)
• Other Specs
  • Same build, touchscreen, fanless operation, certifications, and management requirements as the non‑PoE model

---

🧩 Summary Table

Feature	USW‑Pro‑Max‑16	USW‑Pro‑Max‑16‑PoE
RJ45 ports	12×1 Gb + 4×2.5 Gb	same, but supports PoE/PoE+++
SFP+ ports	2×10 GbE	2×10 GbE
Switching	84 Gbps / 42 Gbps / 62 Mpps	same
PoE budget	N/A	180 W total (32 W/64 W ports)
Power input	USB‑C adapter (25 W)	AC/DC external 210 W adapter
Touchscreen	Yes	Yes
Cooling	Fanless	Fanless
Mounting	Desktop / Wall / Rack	Desktop / Wall / Rack
Managed via	UniFi Network 8.1.127+	Same

---

💡 Use‑case Tips

• Non‑PoE model is ideal for those who only need data connectivity—desktop or rack‑mounted, energy‑efficient, and silent.
• PoE version suits deployments with PoE devices like UniFi access points, VoIP phones, or cameras, offering flexible power distribution on 12 PoE+/4 PoE++ ports.

---
