Ubiquiti UniFi Enterprise Network Video Recorder (ENVR)

Ubiquiti UniFi Enterprise Network Video Recorder (ENVR), a 3U rackmount NVR designed for large-scale, enterprise-level video surveillance deployments:

---

🧰 Key Features

• Form Factor: 3U rackmount
• Drive Bays: 16 × 2.5"/3.5" HDD/SSD (hot-swappable)
• Camera Support:
  • Up to 70 × 4K cameras
  • Up to 140 × 2K cameras
  • Up to 210 × Full HD (1080p) cameras
• Networking Interfaces:
  • 2 × 10G SFP+ uplinks
  • 1 × 10 GbE RJ45 port
• Power Supply:
  • 2 × hot-swappable 550W CRPS for redundancy
• Data Protection: Supports RAID storage technology

---

🔧 Technical Specifications

• Processor: MV-CN10208-A0-CF240AA-C250-SCP
• Memory: 32 GB
• Storage Capacity: 16 × 3.5" HDD/SSD support
• Max. Power Consumption: 410W
• Max. Power Budget for Drives: 310W
• Power Method: 2 × AC input, 100–240V, 7A Max., 50/60Hz (redundant, hot-swappable)
• Enclosure Material: SGCC steel
• Mount Material: Aluminum

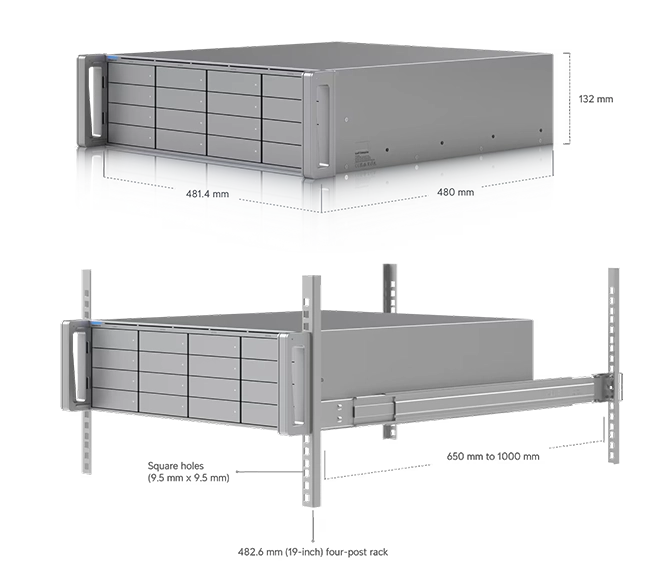

• Dimensions: 481.4 × 480 × 132 mm (19 × 18.9 × 5.2")
• Weight:
  • Without rails: 16.6 kg (36.6 lb)
  • With rails: 19.5 kg (43.0 lb)
• Operating Temperature: -5 to 40° C (23 to 104° F)
• Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC

---

💡 Additional Features

• UniFi Application Suite:
  • Protect
  • Access
• Data Protection: ✓
• Vantage Point: ✓
• Door Access Support: ✓
• Slide Rails Support: Supports 482.6 mm (19") four-post racks with square holes (9.5 × 9.5 mm) and post depths ranging from 650 to 1000 mm (25.6–39.4")
