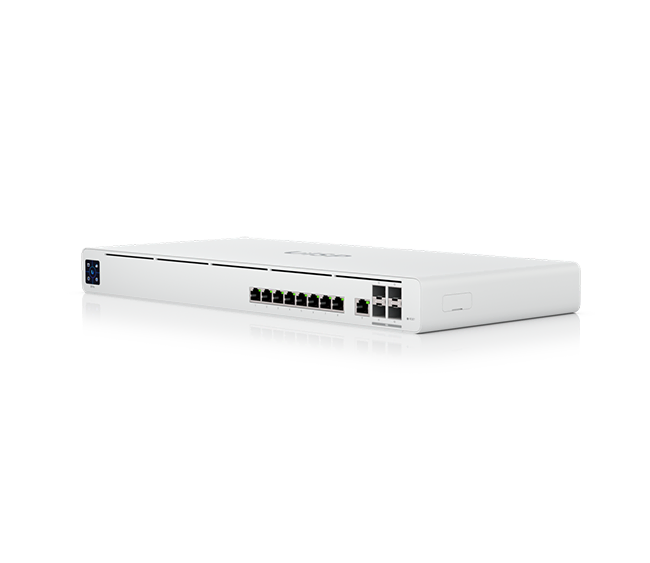

Ubiquiti UISP Router Pro 10 GbE Gateway
KSh 60,500(KSh 70,180 Incl VAT)
- 8× Gigabit RJ45 LAN ports
- 4× 10G SFP+ uplink ports
- Quad-core ARM Cortex-A57 @ 1.7 GHz
- 4 GB DDR4 RAM and 16 GB eMMC storage
- 1.3" color touchscreen for real-time monitoring
- Internal 60 W PSU with optional 27 V DC input
- Managed via UISP platform (app and web)
- Advanced Layer 3 routing with NAT, OSPF, and VLAN support
SKU: UISP-R-ProCategory: Networking Infrastructure
The Ubiquiti UISP Router Pro 10 GbE Gateway (UISP‑R‑Pro) is a powerful 10 GbE gateway designed for high-performance ISP networks. Featuring a quad-core ARM CPU, 4 GB RAM, 8× Gigabit LAN ports, 4× 10G SFP+ uplinks, and a built-in touchscreen for easy monitoring, it delivers robust Layer 3 routing, traffic shaping, and remote management via the UISP platform—perfect for scalable, reliable deployments.
🔧 Detailed Specifications – Ubiquiti UISP‑R‑Pro (UISP Router Pro)
⚙️ Mechanical & Build
- Dimensions: 442.4 × 200 × 43.7 mm (1U rack-mountable)
- Weight: Approximately 3.3 kg
- Enclosure: Rugged SGCC steel, polycarbonate/ABS chassis
🧠 Processor, Memory & Storage
- CPU: Quad-core ARM Cortex-A57 @ 1.7 GHz
- RAM: 4 GB DDR4
- Flash: 16 GB eMMC
🌐 Ubiquiti UISP Router Pro 10 GbE Networking Interfaces
- LAN: 8 × Gigabit RJ45 ports
- WAN: 1 × Gigabit RJ45 uplink port
- Uplinks: 4 × 1/10 Gbps SFP+ ports
- Management: In-band Ethernet, Bluetooth setup
- Display: 1.3″ touchscreen LCD for status and configuration
🔌 Power & Protection

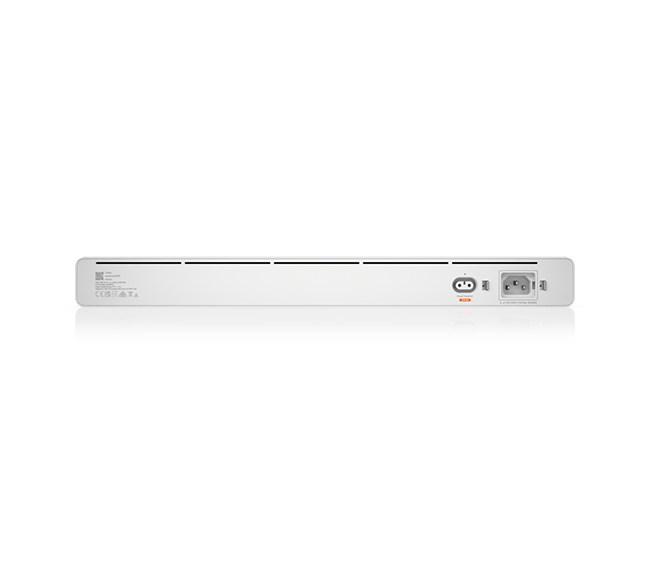

- Power Input: Internal AC/DC (100–240 V AC, 1.5 A) plus optional 27 V DC input (2.2 A)
- PSU: 60 W internal supply; maximum power draw ~50 W
- ESD/EMP: Air ±15 kV, Contact ±8 kV protection
🌡 Environment & Certs
- Temperature Range: –10 °C to +50 °C
- Humidity: 5–95% non-condensing
- Certifications: CE, FCC, IC; NDAA‑compliant
💡 LEDs & Indicators
- RJ45 and SFP+ ports have speed/link/activity LEDs
- Status and touchscreen for real-time device info
🛠 Software & Management
- Managed by UISP App (v1.4.5+)
- Features: Layer 2 switching on ports 1–8, firewall, NAT, OSPF routing, traffic shaping, VLANs, remote monitoring
- Fully rack-mountable 1U form factor with touchscreen management
🔹 Key Highlights
- Heavy-duty 10 GbE router with 8 gigabit LAN and 4 SFP+ uplinks
- Quad-core Cortex-A57 CPU and 4 GB memory for high-performance networking
- Internal 60 W PSU with optional DC input and strong protection
- Built-in touchscreen and BLE for local configuration and status checks
- Ideal for ISP backend, micro-POPs, and UISP-managed networks
✅ Meta Description
The Ubiquiti UISP Router Pro 10 GbE is a rack-mountable 10 GbE ISP gateway featuring 8× Gigabit LAN, 4× SFP+ uplinks, quad-core processor, touchscreen UI, and advanced UISP routing—built for performance and scalability. DatasheetRelated Products
