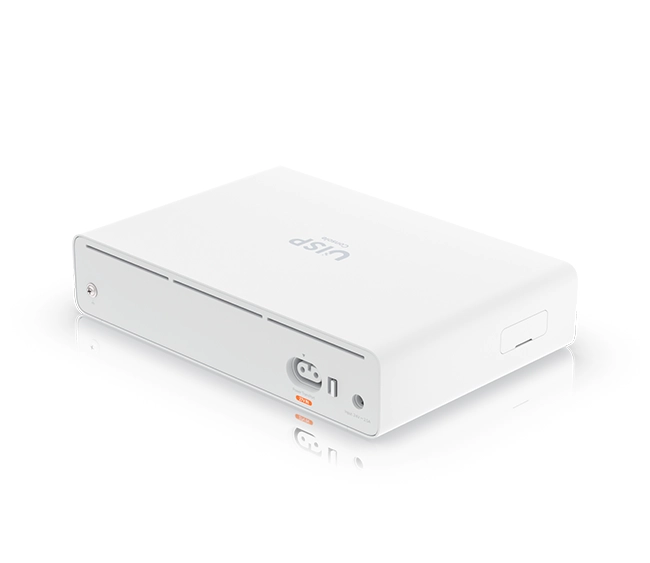

Ubiquiti UISP Console Gateway

The Ubiquiti UISP Console Gateway is an all-in-one network gateway and controller designed for efficient ISP management. Featuring a quad-core ARM CPU, 4 GB RAM, 128 GB SSD, dual 10 GbE uplinks, and 8× Gigabit LAN ports, it supports seamless UISP device control, dual WAN redundancy, and in-band management. Ideal for small to mid-size network deployments requiring reliability and performance.

Detailed Specifications for Ubiquiti UISP Console

---

🔧 Mechanical & Build

• Dimensions: 210.4 × 140.2 × 43.7 mm
• Weight: ~1.5 kg
• Enclosure: SGCC steel and polycarbonate construction
• Mounting Options: Desktop or wall/1U rack-mountable

---

🧠 Hardware & Performance

• Processor: Quad‑core ARM Cortex‑A57 @ 1.7 GHz
• Memory: 4 GB DDR4 RAM
• Flash Storage: 16 GB eMMC
• SSD Storage: 128 GB onboard SSD
• microSD Slot: Supports up to 2 TB

---

🔌 Networking & Ports

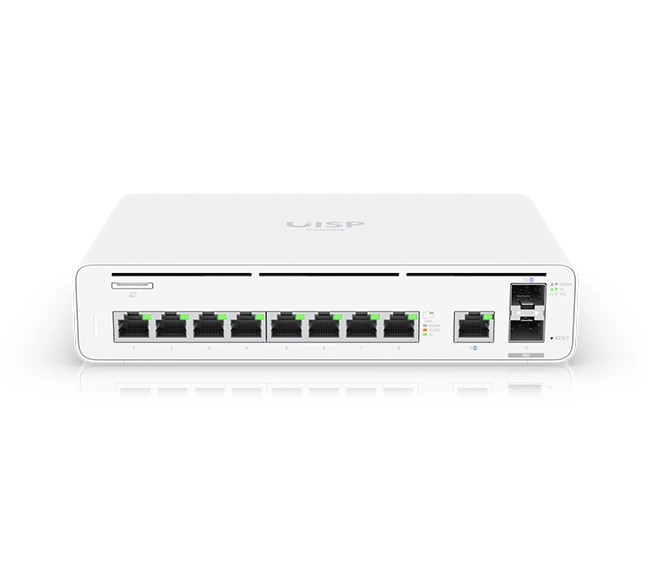

• LAN Ports: 8 × Gigabit RJ45
• LAN SFP+ Port: 1 × 1/10 Gbps SFP+
• WAN Ports: 1 × Gigabit RJ45 + 1 × 1/10 Gbps SFP+
• Management Interfaces: In-band Ethernet, Bluetooth

---

⚡ Power & Protection

• Power Input: External AC/DC adapter or 27 V DC Transport input
• Included Adapter: 24 V DC, 2.5 A
• Supported Voltages: 24–28 V DC
• Max Power Consumption: 30 W
• ESD Protection: Air ±15 kV, Contact ±8 kV

---

🌡 Environmental & Compliance

• Operating Temperature: –10 °C to +50 °C
• Operating Humidity: 5–95% non‑condensing
• Certifications: CE, FCC, IC; NDAA‑compliant

---

💡 LEDs & Indicators

• System Status LED
• Per-Port LEDs: RJ45 and SFP+ ports show speed/link/activity

Meta Description

The Ubiquiti UISP Console Gateway is a compact local gateway featuring an integrated 8‑port Gigabit switch, dual 10 GbE uplinks, quad-core CPU, 128 GB SSD storage, and dual WAN support—ideal for small to medium UISP deployments. Datasheet
