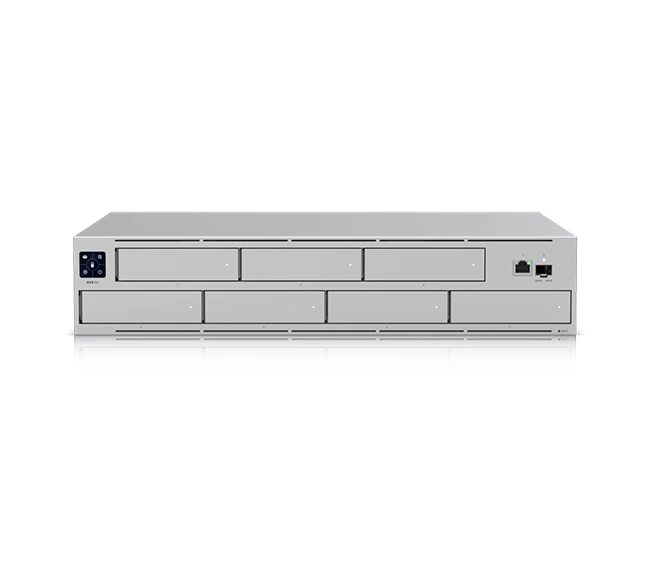

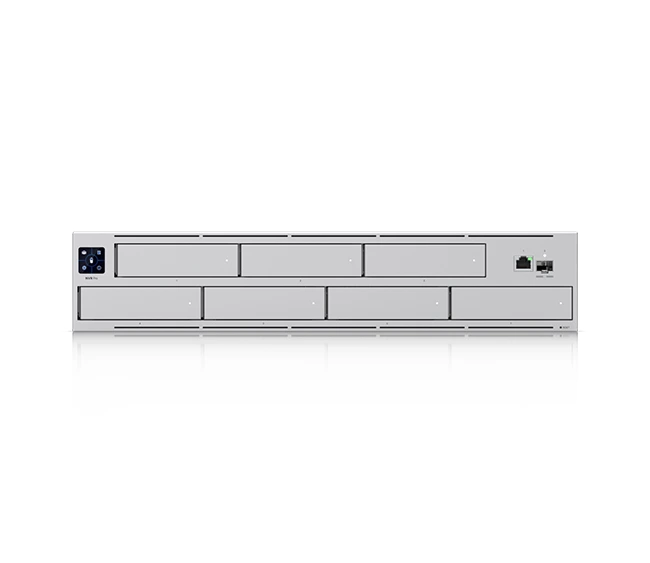

Ubiquiti Network Video Recorder UNVR Pro

The Ubiquiti UniFi Network Video Recorder Pro (UNVR-Pro) is a high-performance, rack-mountable NVR designed for enterprise-grade video surveillance. It integrates seamlessly with the UniFi Protect ecosystem, offering robust storage, scalability, and advanced management features

---

📦 Mechanical

• Dimensions: 442 x 325 x 87 mm (17.4 x 12.8 x 3.4")
• Weight: 9.2 kg (20.3 lb) without mounting brackets; 9.5 kg (20.8 lb) with mounting brackets
• Enclosure Material: SGCC steel
• Mount Material: SGCC steel

---

🧠 Hardware

• Processor: Quad ARM® Cortex®-A57 cores at 1.7 GHz
• Memory: 8 GB
• Hard Drive Capacity: (7) 2.5"/3.5" HDD/SSD support
• Max. Power Budget for Drives: 135W
• Max. Power Consumption: 160W
• Power Method:
  • (1) Universal AC input, 100–240V AC, 3A Max., 50/60 Hz
  • (1) USP-RPS DC input, 11.5V DC, 13.91A
• Power Supply: AC/DC, internal, 200W

---

🌐 Networking & Interfaces

• Networking Interface:
  • (1) 10G SFP+
  • (1) GbE RJ45
• Management Interface: Ethernet In-Band
• RF Interface: Bluetooth 4.1

---

📺 Display & Indicators

• LCM Display: 1.3" touchscreen
• LED Indicators:
  • System:
    • Flashing white: Bootup in progress
    • Flashing blue: Firmware upgrading
    • Steady white: Factory defaults, awaiting adoption
    • Steady blue: Device is adopted
  • Ethernet:
    • Green: 1 Gbps
    • Amber: 10/100 Mbps
  • SFP+:
    • White: 10 Gbps
    • Green: 1 Gbps
  • HDD:
    • White: Disk detected
    • Amber: Disk error
  • RPS:
    • Blue: Ready

---

📹 Video & Storage

• Managed Cameras:
  • Up to 70 HD cameras
  • Up to 35 2K cameras
  • Up to 24 4K cameras
• Storage Capacity: (7) 3.5" drive bays
• Data Protection: Supports RAID 1 and RAID 5 configurations

---

🌡️ Environmental

• Operating Temperature: -5 to 40°C (23 to 104°F)
• Operating Humidity: 5% to 95% noncondensing
• Certifications: CE, FCC, IC

UniFi Network Video Recorder Pro - Tech Specs
