Ubiquiti Network Video Recorder UNVR

KSh 55,172(KSh 64,000 Incl VAT)

🗄️ 4-Bay NVR – Supports up to four 3.5"/2.5" HDDs or SSDs (max 32 TB).
🔁 RAID Support – RAID 1 and RAID 5 for data redundancy.
📷 Camera Capacity – Up to 60 Full HD or 18 4K cameras.
⚡ 10G & 1G Ports – High-speed connectivity with 10G SFP+ and 1G RJ45.
🧠 Easy Management – Integrated with UniFi Protect web & mobile apps.
🧰 Rackmountable – 1U form factor with rack kit included.

Tags:DS-2CD1043G0-I(4mm)©DS-2CD1043G0-IDS-2CD1023G0E-I

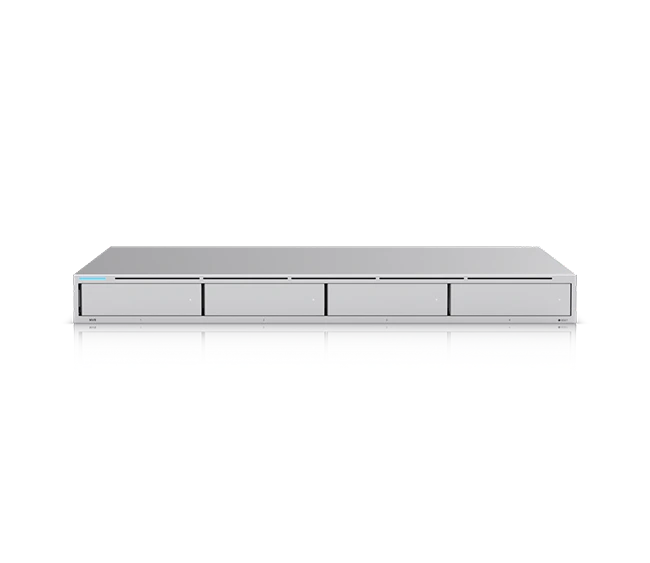

The Ubiquiti UniFi Protect Network Video Recorder (UNVR) is a 4-bay enterprise-grade NVR designed for scalable, secure, and centralized video surveillance management within the UniFi Protect ecosystem.

🔑 Key Features

Drive Bays: Accommodates up to four 2.5"/3.5" HDDs or SSDs (drives not included).
Storage Capacity: Supports up to 32 TB total storage (e.g., 4 × 8 TB drives).
RAID Support: Automated RAID 1 and RAID 5 configurations for data redundancy.
Camera Support:
- Up to 18 × 4K cameras.
- Up to 60 × Full HD (1080p) cameras.
- Provides approximately 30 days of storage with four 8 TB drives in RAID 5.

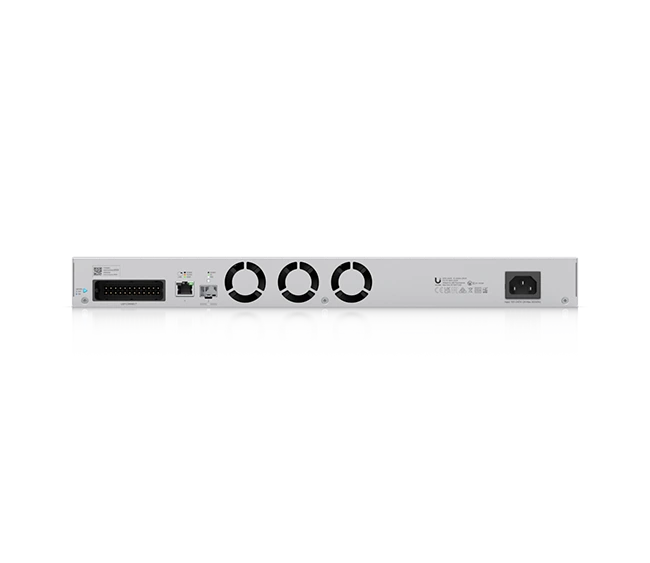

Networking Interfaces:
- 1 × 10G SFP+ port.
- 1 × Gigabit RJ45 port.
Power Options:
- Universal AC input (100–240V AC, 50/60 Hz).
- Supports USP-RPS (Redundant Power System) for PSU failover.
Form Factor: 1U rackmountable (rackmount kit included).
Management: Accessible via UniFi Protect web interface and mobile app (iOS and Android).

📦 What's Included

1 × UniFi Protect Network Video Recorder (UNVR)
Rackmount kit.
Quick Start Guide.

🛠️ Technical Specifications

Processor: Quad-Core ARM Cortex-A57 at 1.7 GHz.
Memory: 4 GB DDR4.
On-Board Flash Storage: 32 MB SPI NOR, 8 GB USB Flash.
Power Consumption:
- Maximum: 100W.
- Maximum for Drives: 75W.
Dimensions: 442.4 × 325 × 43.7 mm (17.4 × 12.8 × 1.7").
Weight:
- Without Rackmount Brackets: 5.11 kg (11.27 lb).
- With Rackmount Brackets: 5.20 kg (11.46 lb).
Operating Temperature: -5 to 40°C (23 to 104°F).
Certifications: CE, FCC, IC.
