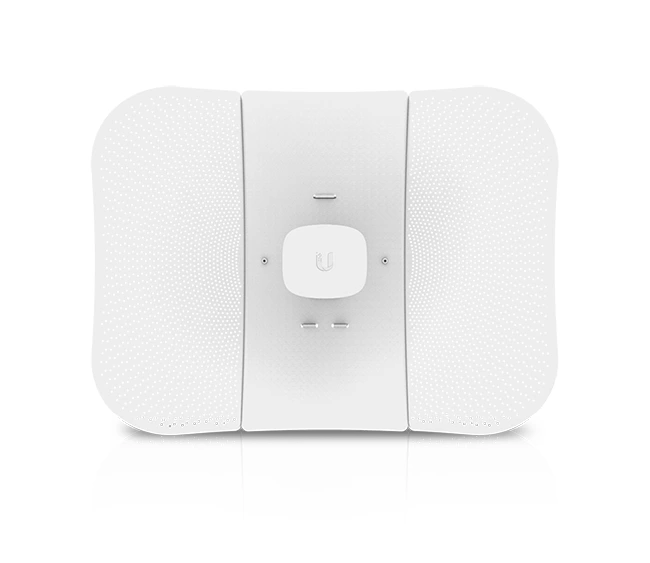

Ubiquiti LiteBeam 5AC Gen2 5GHz CPE

Ubiquiti LiteBeam 5AC Gen2 (LBE-5AC-Gen2) A high-gain, directional airMAX ac CPE for long-distance, point-to-point and point-to-multipoint links.

---

🔍 Detailed Specifications

🛠️ Hardware Specifications

• CPU: Atheros MIPS 74KC @ 650 MHz
• Memory: 64 MB DDR2
• Storage: 8 MB Flash
• LEDs: Power, Ethernet

🌐 Networking Interface

• 1x 10/100/1000 Mbps Ethernet Port
  • Supports passive PoE in (24V, 0.3A)
  • Surge/ESD protection: ±24 kV Contact / Air

📡 Wireless

• Operating Frequency:
  • Worldwide: 5150 – 5875 MHz (exact range depends on country regulations)
• Antenna Type: Integrated directional parabolic reflector
• Antenna Gain: 23 dBi
• Max TX Power: 25 dBm (adjustable)
• Beamwidth:
  • Azimuth: 6.7°
  • Elevation: 6.7°
• Polarization: Dual Linear
• AirMAX ac Technology: Yes (supports Time Division Multiple Access - TDMA)
• Channel Widths:
  • PTP Mode: 10/20/30/40/50/60/80 MHz
  • PTMP Mode: 10/20/30/40 MHz

🧠 Management Radio

• Wi-Fi Radio (2.4 GHz): Dedicated for easy smartphone-based setup and diagnostics
• Management Interface: airOS 8 with airView, airMagic, and Discovery Tool

⚡ Power

• Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
• Power Supply: 24V, 0.3A Gigabit PoE Adapter (Included)
• Power Consumption: 7 Watts max

🏗️ Mechanical & Environmental

• Dimensions: 358 x 271.95 x 272.5 mm
• Weight: 800 g (without mount), 980 g (with mount)
• Wind Survivability: 200 km/h
• Wind Loading: 275 N @ 200 km/h

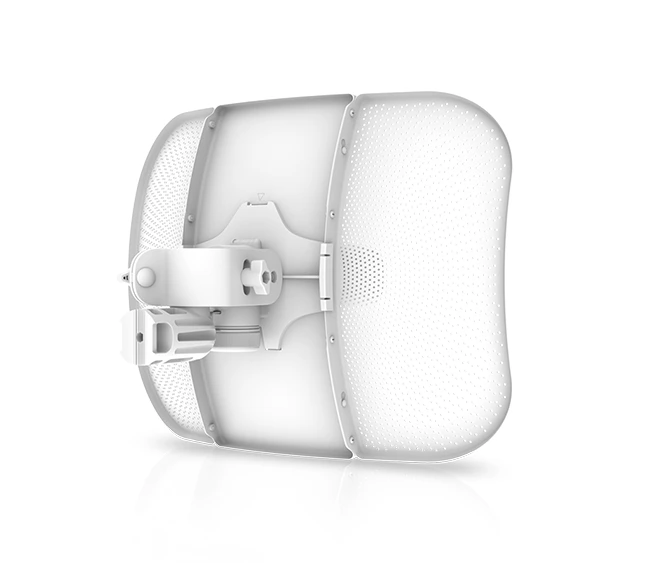

• Mounting: Pole mount (bracket included)
• Operating Temperature: –40°C to +70°C
• Operating Humidity: 5% to 95% non-condensing
• Certifications: CE, FCC, IC

---

Conclusion

The Ubiquiti LiteBeam 5AC Gen2 (LBE-5AC-Gen2) is a high-performance 5GHz CPE featuring a 23 dBi antenna, 450+ Mbps throughput, airMAX ac technology, and a built-in Wi-Fi setup radio—perfect for long-range outdoor wireless links. Datasheet
