Tycon TP-VRHP-4824 Voltage Converter

The Tycon TP-VRHP-4824 Voltage Converter is a high-reliability isolated DC-to-DC voltage converter designed to deliver 24VDC output from a wide 36–72VDC input range, typically used in telecom, PoE, and industrial applications. It supports up to 2.9A continuous output (approximately 70W), features full electrical isolation, and is housed in a rugged metal case suitable for DIN rail mounting. The device is engineered for demanding environments where regulated 24V power is essential.

---

⚡ Electrical Specifications

• Input Voltage Range: 36VDC to 72VDC
• Output Voltage: 24VDC (regulated)
• Output Current: 2.9A continuous
• Maximum Output Power: 70W
• Conversion Efficiency: Greater than 85%
• Load Regulation: ±5%
• Line Regulation: ±1%
• Ripple & Noise:
  • Ripple: Max 2%
  • Peak Noise: Max 5%
• Electrical Isolation:
  • Input to Output: ≥1500VDC
  • Isolation Resistance: ≥100MΩ
• Startup Time: Typically <1 second
• Protections:
  • Short circuit (auto-recovery)
  • Overvoltage protection
  • Overload protection

---

🏗️ Mechanical and Physical Specifications

• Enclosure Material: Metal (rugged industrial design)
• Mounting: DIN rail compatible (brackets included)

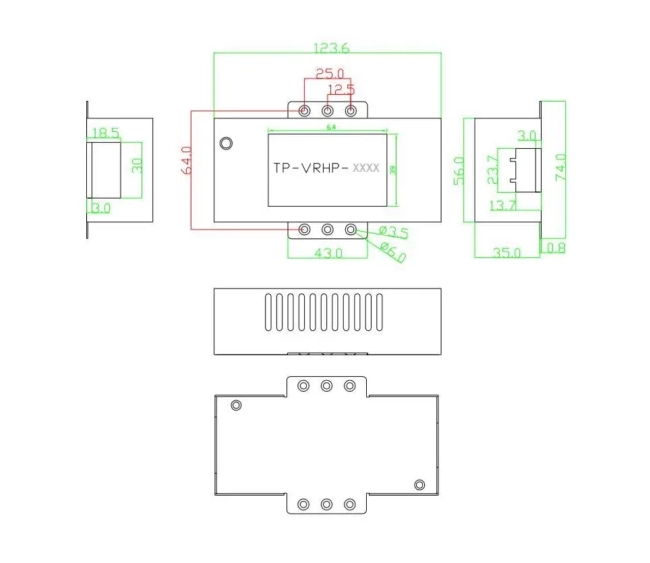

• Dimensions: 133mm × 75mm × 38mm (5.24" × 3.00" × 1.50")
• Weight: Approx. 298g (10.5 oz)
• Cooling Method: Passive convection (fanless operation)
• Wire Terminals: Accepts up to 12 AWG

---

🌡️ Environmental Ratings

• Operating Temperature Range: –30°C to +65°C (–22°F to +149°F)
• Storage Temperature: –40°C to +85°C
• Relative Humidity: 0% to 90% non-condensing
• Ingress Protection: Sealed enclosure, suitable for industrial indoor use

---

🛡️ Safety and Compliance

• Electrical Isolation: 1500VDC minimum
• Protections:
  • Short circuit with auto-recovery
  • Overload and overvoltage safeguards
  • Optional low-voltage disconnect in system configuration
• Certifications: RoHS compliant
• Warranty: Typically 3 years (check distributor policy)

---

🧰 Primary Applications

• Telecom infrastructure with –48VDC systems
• High-efficiency PoE and security camera power supplies
• Wireless network base stations
• Industrial control panels and automation systems
• Off-grid or battery-based remote sites needing regulated 24V output

  Meta Description: Tycon TP-VRHP-4824 is an isolated 36–72VDC to 24VDC converter delivering 2.9A (70W) output. Designed for telecom and industrial use, it features 1500VDC isolation, overload protection, passive cooling, and a rugged DIN-rail-ready metal enclosure. Datasheet
