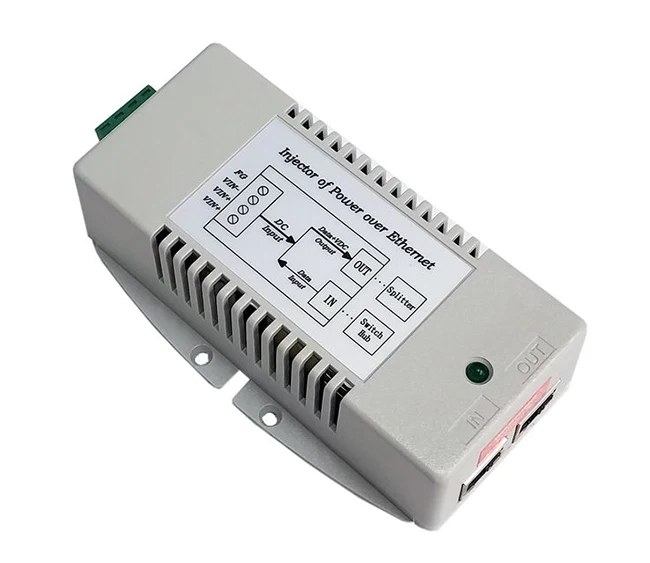

Tycon TP-DCDC-4824G-HP - DC to DC Converter

KSh 34,000(KSh 39,440 Incl VAT)

Converts 36–72VDC input to regulated 24VDC output
Delivers up to 50W continuous power
Integrated Gigabit passive PoE injector (pins 4,5 + / 7,8 −)
High efficiency >90% for low heat and power loss
Wide operating temperature: -40°C to +70°C
Built-in protections: ESD, surge, short circuit, and reverse polarity
Compact, rugged enclosure with mounting tabs
Ideal for high-power IP cameras, radios, and industrial gear

SKU: TP-DCDC-4824G-HPCategory: Power solutions

The Tycon TP-DCDC-4824G-HP is a high-power, industrial-grade DC-to-DC converter designed to deliver reliable, regulated 24VDC output from a 48VDC input source, with integrated Gigabit passive PoE injection. Built for demanding applications in harsh environments, this unit supports up to 50W of power, making it suitable for high-power wireless radios, IP cameras, and industrial automation systems. Engineered with robust protections, wide input voltage range, and exceptional efficiency, the TP-DCDC-4824G-HP ensures stable operation in mission-critical remote power applications such as WISP networks, surveillance, and intelligent transportation systems.

Electrical Specifications

Input Voltage Range: 36VDC to 72VDC
Input Current: 1.25A @ 48VDC input (typical under full load)
Output Voltage: 24VDC ± 5% (regulated)
Output Power: 50W continuous
Efficiency: > 90% @ 48V input
Output Current: 2.1A @ 24VDC
PoE Output Type: Passive PoE, non-802.3af/at compliant
PoE Pinout (Gigabit Compatible): Pins 4,5 (+), 7,8 (−)
Output Ripple: < 100mV peak-to-peak
Load Regulation: ±1%
Line Regulation: ±1%
Isolation: Non-isolated DC-DC converter
Startup Time: < 2 seconds (typical)

Mechanical Specifications

Dimensions: 99mm x 58mm x 24mm (3.9" x 2.3" x 0.95")
Weight: 180g (0.40 lbs)
Enclosure: High-strength, impact-resistant ABS plastic
Mounting Options: Integrated mounting tabs for wall or DIN rail installations
Connectors:
- Input: Wire leads (Red [+], Black [−])
- Output: RJ-45 shielded PoE/Data jack

Environmental Ratings

Operating Temperature: -40°C to +70°C (−40°F to +158°F)
Storage Temperature: -40°C to +85°C (−40°F to +185°F)
Humidity: 5% to 95% non-condensing
Cooling: Passive (convection cooled, no moving parts)
Ingress Protection: IP20 (indoor-rated enclosure)

Compliance & Safety

EMC Compliance: FCC Class B, CE
ESD Protection: ±15kV Air Discharge, ±8kV Contact
Surge Protection: IEC 61000-4-5 Compliant
Input Reverse Polarity Protection: Yes
Overload Protection: Yes (auto-recovery)
Short Circuit Protection: Yes
Overvoltage Protection: Yes

Application Scenarios

High-power wireless access points and CPE radios
Long-range IP surveillance cameras
Industrial and transportation control systems
Remote power deployments for telecom base stations
Outdoor enclosures where regulated 24VDC PoE is required

Features Summary

Converts 48VDC to regulated 24VDC with up to 50W output
Supports Gigabit passive PoE for high-speed data + power
Built-in surge, ESD, short-circuit, and polarity protection
Wide input voltage range for versatile power compatibility
Rugged design for extreme temperature and environmental conditions
Easy integration with RJ-45 PoE output and wire-lead input
Compact and reliable solution for remote or off-grid power delivery
