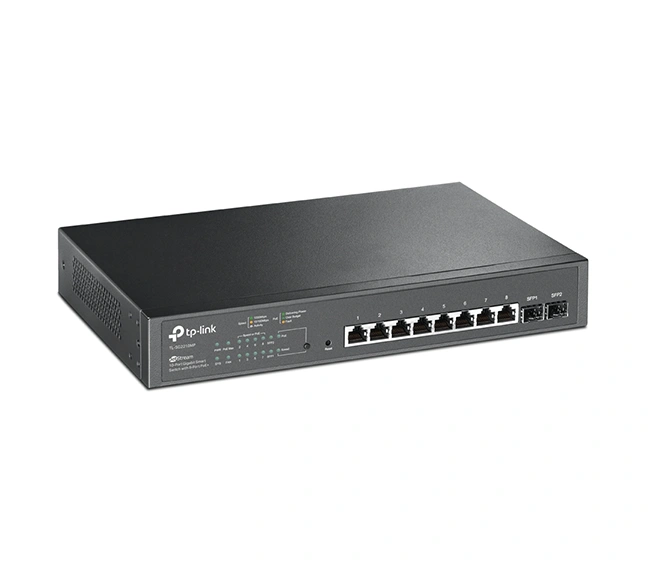

TP-Link JetStream 10-Port Gigabit Smart Switch 8-Port PoE+

The TP-Link JetStream 10-Port Gigabit Smart Switch 8-Port PoE+ (TL-SG2210MP) is a professional-grade 10-port smart managed switch with 8 Gigabit PoE+ ports and 2 SFP slots, designed for business-class networking. It supports advanced Layer 2 and Layer 3 features, centralized cloud management via Omada SDN, and delivers a total PoE power budget of 150 W. Ideal for deploying IP cameras, VoIP phones, access points, and other PoE-powered devices, it combines performance, flexibility, and security in one compact device.

---

🧠 Hardware Specifications

• Ports:
  • 8 × 10/100/1000 Mbps RJ45 ports with PoE+
  • 2 × Gigabit SFP slots for fiber uplinks
• PoE Standard: IEEE 802.3af/at
• Max PoE Power per Port: 30 W
• Total PoE Budget: 150 W
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• MAC Address Table: 8K entries
• Buffer Memory: 512 KB
• Jumbo Frame: 9 KB support
• Fan: 1 × Smart fan for cooling
• Dimensions: 294 × 180 × 44 mm
• Mounting: Rackmount and desktop options
• Casing: Durable metal case
• Weight: Approx. 2.1 kg
• Power Input: 100–240V AC, 50/60 Hz
• Max Power Consumption: 174.4 W
• Energy-Efficient Ethernet (EEE): Supported

---

⚡ PoE & Smart Features

• PoE Auto-Recovery: Automatically reboots unresponsive PoE devices
• Port Prioritization: Ensures critical devices receive power first
• Extend Mode: Up to 250 m data + power transmission on ports 1–4
• PoE Scheduling: Manage power usage by time
• Loop Prevention and Storm Control: Network stability and redundancy
• Omada SDN Integration: Unified cloud management with zero-touch provisioning

---

🌐 L2 / L3 & Security Features

• VLAN Support: 802.1Q VLAN, port-based, voice VLAN
• QoS: Based on port, 802.1p, DSCP, IP, MAC
• IGMP Snooping & MLD Snooping: Optimized multicast traffic
• Link Aggregation: 802.3ad LACP
• Spanning Tree Protocol: STP / RSTP / MSTP
• Access Control Lists (ACLs): L2–L4 filtering for security policies
• DoS Defense and Port Security
• Static Routing (Layer 3)
• DHCP Snooping and Option 82 Support
• 802.1X Authentication and RADIUS
• Management Features:
  • Web GUI, CLI, SNMP v1/v2c/v3, RMON
  • Dual Image firmware
  • HTTPS and SSH access
  • Centralized Omada Controller or Cloud Management

---

📝 Meta Description

  TP-Link JetStream 10-Port Gigabit Smart Switch 8-Port PoE is a 10-port smart Gigabit PoE+ switch with 8 PoE ports (150W budget), 2 SFP uplinks, Layer 2+ features, VLAN, ACLs, QoS, and centralized Omada SDN management—designed for secure and efficient business networks. Datasheet
