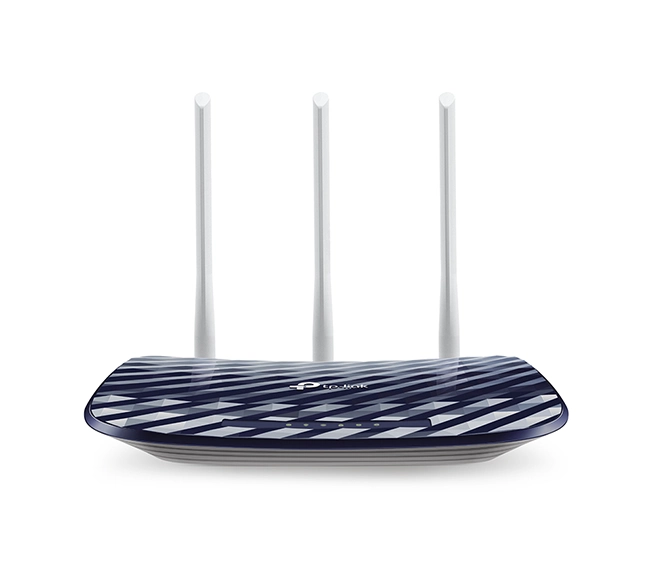

TP-Link AC750 Wireless Dual Band Router - TL-ARCHER C20
KSh 25,000(KSh 29,000 Incl VAT)
- Simultaneous 300 Mbps at 2.4 GHz and 433 Mbps at 5 GHz for 733 Mbps total available bandwidth
- Three external antennas provide stable omnidirectional signal and superior wireless coverage
- Supports three modes：Router，Range Extender and Access Point Modes
- IPTV supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize HD streaming
- Parental Controls manage when and how connected devices can access the internet
- Guest Network provides separate access for guests while securing the host network
SKU: TL-ARCHER C20Category: Networking Infrastructure
The TP-Link AC750 Wireless Dual Band Router - TL-ARCHER C20 is a dual-band wireless router that supports the 802.11ac Wi-Fi standard, offering improved performance and coverage for small homes and SOHO environments. With three external antennas, multiple operation modes, and essential security features, it provides a stable and flexible networking solution for basic to moderate internet use.
⚙️ Hardware Specifications
- Model: Archer C20
- Wireless Standards:
- 5 GHz: IEEE 802.11ac/n/a
- 2.4 GHz: IEEE 802.11n/g/b
- Frequency: Dual-Band (2.4 GHz + 5 GHz)
- Wi-Fi Speed:
- 2.4 GHz: up to 300 Mbps
- 5 GHz: up to 433 Mbps
- Total: AC750
- Processor: 1x Single-core SoC
- Antennas: 3 × external fixed antennas
- Ethernet Ports:
- 1 × 10/100 Mbps WAN port
- 4 × 10/100 Mbps LAN ports
- Buttons:
- Power On/Off
- WPS/Reset
- Wi-Fi On/Off
- Power Supply: 9 V / 0.6 A DC adapter
- LED Indicators: Power, Internet, LAN, WLAN (2.4/5GHz), WPS
- Dimensions: 230 × 144 × 35 mm
- Mounting: Desktop (wall-mountable design)
🌐 Software & Features
- Operation Modes:
- Router Mode
- Access Point Mode
- Range Extender Mode
- EasyMesh support (on newer firmware)
- Guest Network:
- 1 × 2.4 GHz Guest SSID
- 1 × 5 GHz Guest SSID
- QoS: Basic bandwidth control
- Security:
- WPA-PSK / WPA2-PSK
- SPI Firewall
- IP and MAC address binding
- DoS protection
- Parental Controls: URL and time scheduling
- NAT Forwarding: Virtual Server, Port Triggering, UPnP, DMZ
- VPN Pass-Through: PPTP, L2TP, IPSec
- Dynamic DNS: Supported (DynDNS, NO-IP, Comexe)
- IPv6 Support: Yes
- Management:
- Web interface
- TP-Link Tether app
🌡 Environmental
- Operating Temperature: 0°C ~ 40°C
- Storage Temperature: -40°C ~ 70°C
- Operating Humidity: 10% ~ 90% non-condensing
- Storage Humidity: 5% ~ 90% non-condensing
- Certifications: CE, FCC, RoHS
📝 Meta Description
TP-Link AC750 Wireless Dual Band Router - TL-ARCHER C20 is an AC750 dual-band wireless router with 300 Mbps on 2.4 GHz and 433 Mbps on 5 GHz. It features three antennas, Fast Ethernet ports, guest networks, EasyMesh support, and robust security for small home and SOHO users. DatasheetRelated Products
