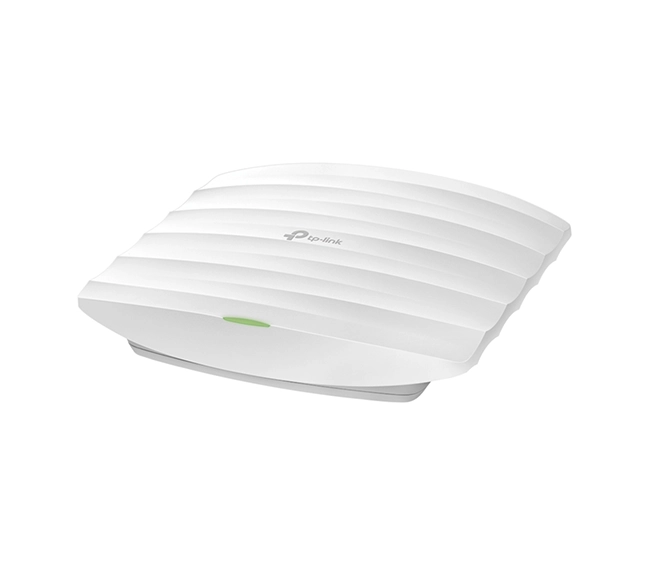

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount AP - EAP225

KSh 5,000(KSh 5,800 Incl VAT)

Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1317 Mbps Wi-Fi speeds.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP) Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
Advanced Wireless Tech: Optimize network performance with MU-MIMO, Band Steering, Airtime Fairness and Beamforming technologies.

SKU: TL-EAP225Category: Networking Infrastructure

The TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount AP - EAP225 is designed for small-to-medium business environments that require stable dual-band Wi-Fi, strong coverage, and centralized management. It delivers a total Wi-Fi speed of up to 1350 Mbps, supports MU-MIMO for efficient multi-user performance, and integrates seamlessly with TP-Link’s Omada SDN platform for scalable network management.

Detailed Specifications

Wi-Fi Standards:

IEEE 802.11ac/n/g/b/a
Dual-band AC1350

Speed Performance:

2.4 GHz: Up to 450 Mbps
5 GHz: Up to 867 Mbps
Combined: Up to 1317 Mbps (rounded as AC1350)

Frequency Bands:

2.4 GHz and 5 GHz simultaneously

Antenna Design:

Internal omnidirectional antennas optimized for ceiling-mounted coverage

Operation Modes:

Access Point Mode

Ports:

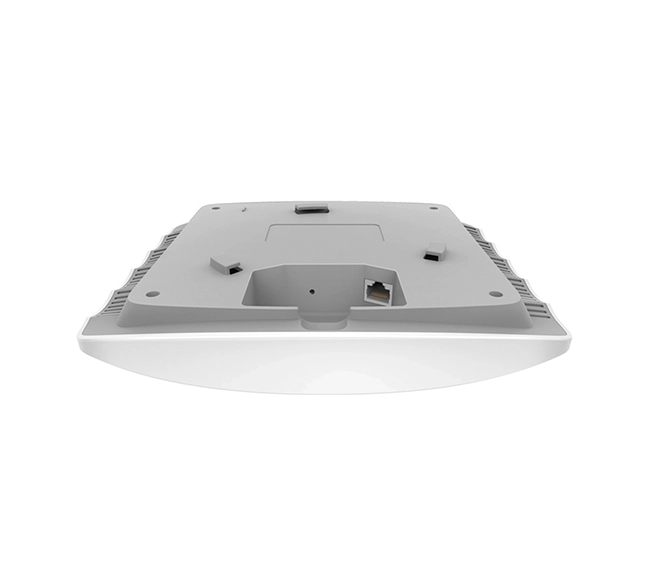

1× Gigabit Ethernet Port (supports 802.3af PoE for flexible installation)

Coverage & Capacity:

Suitable for offices, hotels, schools, and restaurants
MU-MIMO technology for efficient multi-user performance
Band steering for guiding devices to the optimal frequency band

Security:

WPA/WPA2/WPA3-Enterprise encryption
Captive portal with customizable authentication for guests
MAC address filtering
SSID to VLAN mapping for network segmentation

Management Features:

Managed via Omada Controller software, Omada Cloud Controller, or Omada App
Load balancing for consistent performance across multiple APs
Multiple SSIDs (up to 16)
Access control and scheduling

Power Supply:

802.3af PoE
Optional DC power adapter (sold separately)

Mounting Options:

Ceiling or wall mount for discreet, professional installation

Dimensions:

Approx. 8.1 × 8.1 × 1.9 inches (varies slightly by model)

Key Features

AC1350 dual-band Wi-Fi with MU-MIMO
Gigabit Ethernet for high-speed wired backhaul
Omada SDN centralized cloud management
Captive portal for secure guest access
PoE support for easy installation

Meta Description

TP-Link AC1350 Wireless MU-MIMO Gigabit Ceiling Mount AP - EAP225 with dual-band Wi-Fi, Gigabit port, PoE, Omada SDN management, and captive portal — ideal for SMB wireless networking. Datasheet
