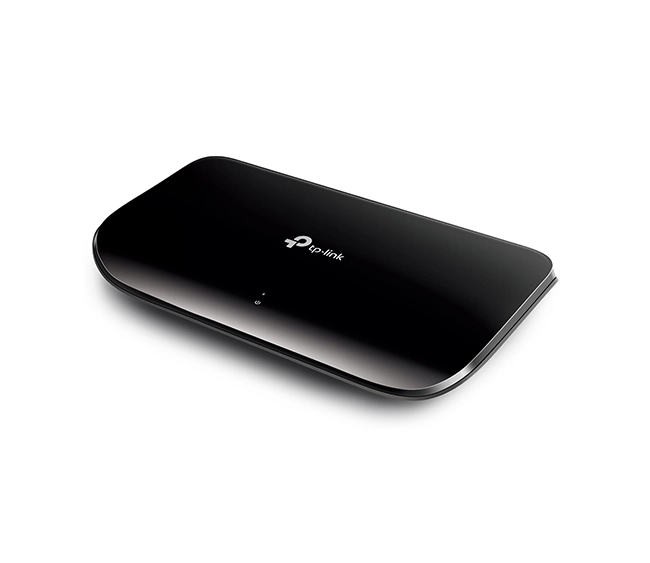

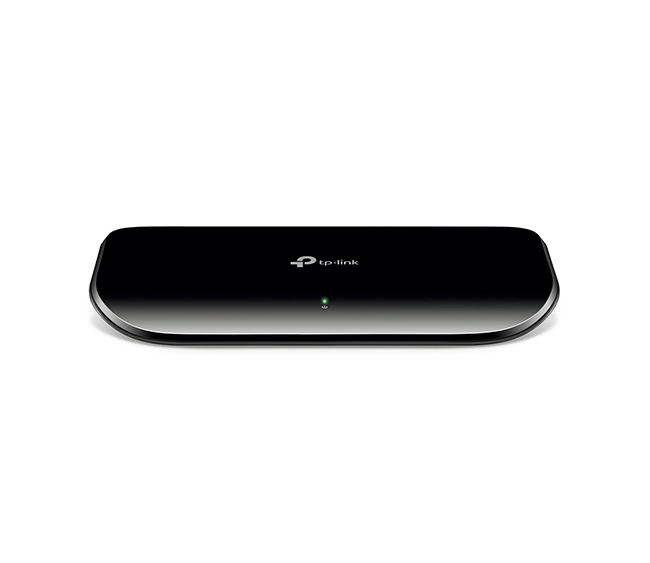

TP-Link 8-Port Gigabit Desktop Switch (TL-SG1008D)

The TP-Link 8-Port Gigabit Desktop Switch (TL-SG1008D) is an 8‑port unmanaged Gigabit switch designed for homes, small offices, and multimedia setups. It offers silent, fanless operation, plug-and-play simplicity, Auto-MDI/MDIX, Green Ethernet energy savings, and support for larger frames and efficient multicast features in a compact desktop or wall-mount casing.

---

🧠 Hardware Specifications

• Ports: 8 × 10/100/1000 Mbps Gigabit Ethernet
• Switching Capacity: 16 Gbps non-blocking
• Forwarding Rate: ~1.19 million packets per second
• MAC Table: 4K entries
• Buffer Memory: ~1.5–2 MB
• Jumbo Frames: Up to 15 KB
• Flow Control: IEEE 802.3x full-duplex & backpressure half-duplex

---

🌐 Network & Performance Features

• Auto-Negotiation and Auto-MDI/MDIX on all ports
• IEEE 802.3x flow control to prevent packet loss
• Green Ethernet conserves up to 80% power by adjusting usage based on link/cable status

---

⚡ Power & Physical Details

• Power Supply: External 9 V DC / 0.6 A adapter
• Max Power Consumption: ~4.6 W (~16 BTU/h)
• Enclosure: Rugged plastic, fanless for silent operation
• Mounting: Desktop or wall-mount capable
• LEDs: Power indicator and per-port link/activity lights

---

🌡 Environmental Specs

• Operating Temperature: 0 °C to 40 °C
• Storage Temperature: –40 °C to 60 °C
• Humidity: 10%–90% RH operating, 5%–90% RH storage (non-condensing)
• Certifications: CE, FCC, RoHS

---

📝 Meta Description

TP-Link 8-Port Gigabit Desktop Switch (TL-SG1008D) is an 8-port Gigabit unmanaged switch with 16 Gbps capacity, jumbo frame support, Green Ethernet energy savings, and silent fanless design—ideal for high-speed wired networking in home or office environments. Datasheet
