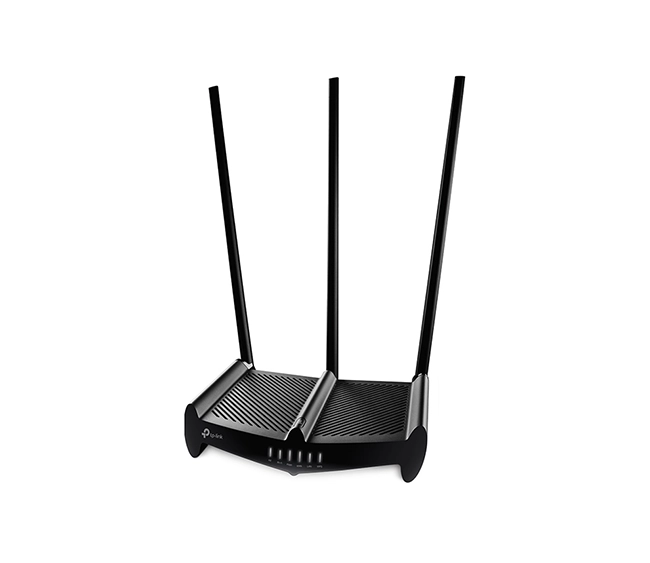

TP-Link 450Mbps High Power Wireless N Router - TL-WR941HP

The TP-Link 450Mbps High Power Wireless N Router - TL-WR941HP is a high-power 2.4GHz wireless N router built for extended coverage, high wall penetration, and strong signal performance. Featuring three 9dBi detachable antennas, this router delivers up to 450 Mbps wireless speed, making it ideal for large homes, multi-story buildings, and offices that require solid coverage in every corner. It supports Router, Access Point, and Range Extender modes, making it versatile and adaptive to various networking needs.

Hardware Specifications

• Model: TL-WR941HP
• Processor: Single-core @ ~650 MHz
• Memory: 64 MB RAM, 8 MB Flash
• Ethernet Ports:
  • 1 × 10/100 Mbps WAN
  • 4 × 10/100 Mbps LAN
• Antennas:
  • 3 × 9dBi High-Gain Detachable Antennas
  • RP-SMA Connectors
• Buttons:
  • Power On/Off
  • Wi-Fi On/Off
  • WPS
  • Reset
  • RE (Range Extender Mode Toggle)
• Power Supply: 12V DC / 1.5A
• Dimensions: 227.5 × 190 × 48.3 mm

Wireless Specifications

• Wi-Fi Standard: IEEE 802.11b/g/n (Wi-Fi 4)
• Frequency Band: 2.4 GHz only
• Max Wireless Speed:
  • 802.11n: Up to 450 Mbps
  • 802.11g: Up to 54 Mbps
  • 802.11b: Up to 11 Mbps
• Transmit Power:
  • CE Region: <20 dBm
  • FCC Region: <30 dBm
• Receive Sensitivity (typical):
  • 450 Mbps: -71 dBm
  • 150 Mbps: -71 dBm
  • 54 Mbps: -77 dBm
  • 11 Mbps: -91 dBm
  • 6 Mbps: -89 dBm
  • 1 Mbps: -97 dBm

Software & Features

• Operating Modes:
  • Wireless Router
  • Range Extender
  • Access Point
• Wireless Security:
  • WEP (64/128/152-bit)
  • WPA / WPA2
  • WPA-PSK / WPA2-PSK
  • WPA/WPA2-Enterprise (802.1X)
• Network Management:
  • Parental Controls
  • Guest Network
  • Bandwidth Control
  • QoS by device
  • IP/MAC Binding
  • Access Control
• NAT Forwarding Options:
  • Virtual Server
  • Port Forwarding
  • Port Triggering
  • DMZ
  • UPnP
• WAN Connection Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
• Other Features:
  • IPTV Support (IGMP Proxy/Snooping, VLAN tagging)
  • IPv6 Support
  • Dynamic DNS (No-IP, DynDNS)
  • Tether App & Web-based UI

Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% (non-condensing)
• Storage Humidity: 5% to 90% (non-condensing)
• Certifications: CE, FCC, RoHS

In the Box

• TL-WR941HP Router
• 3 × 9dBi External Antennas
• Power Adapter (12V / 1.5A)
• RJ45 Ethernet Cable
• Quick Installation Guide

---

Key Features

• Superior Range – High power amplifiers and high-gain antennas provide enhanced wireless range.
• Wall-Penetrating Wi-Fi – Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
• 3 Modes Functionality – Offers three wireless modes, including Router, Range Extender, and Access Point
• 450Mbps Wireless Speed – Ideal for video streaming, online gaming and VoIP

---
