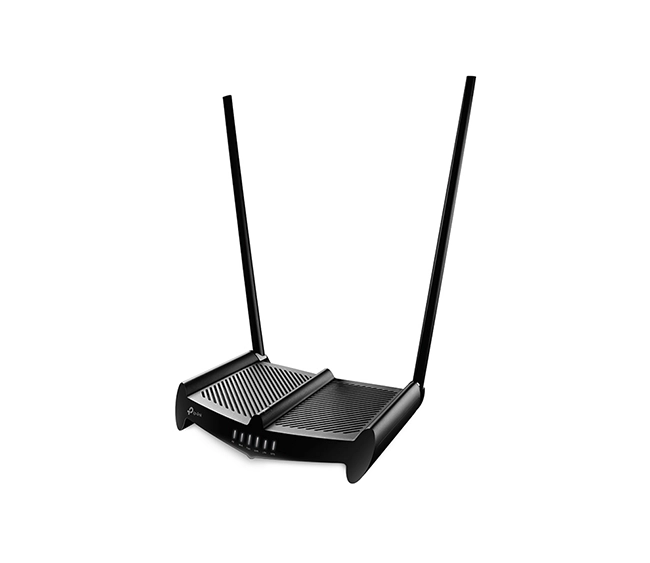

TP-Link 300Mbps High Power Wireless N Router - TL-WR841HP

The TP-Link 300Mbps High Power Wireless N Router - TL-WR841HP is a powerful 2.4GHz wireless N router designed to extend Wi-Fi coverage significantly beyond standard routers. With two high-gain 9dBi antennas and a high-power amplifier, it delivers up to 300 Mbps wireless speeds—ideal for large homes, offices, and multi-room environments where signal penetration through walls is essential. It supports multiple operation modes and strong wireless security, making it a cost-effective yet robust connectivity solution.

Hardware Specifications

• Model: TL-WR841HP
• Processor: Single-core @ ~650 MHz
• RAM: 64 MB
• Flash Memory: 8 MB
• Ethernet Ports:
  • 1 × 10/100 Mbps WAN
  • 4 × 10/100 Mbps LAN
• Antennas:
  • 2 × 9dBi Detachable High-Gain External Antennas
  • RP-SMA Connector
• Buttons:
  • Power On/Off
  • Wi-Fi On/Off
  • WPS
  • Reset
  • RE (Range Extender mode toggle)
• Power Supply: 12V DC / 1A
• Dimensions: 227.5 × 190 × 48.3 mm

Wireless Specifications

• Wi-Fi Standard: IEEE 802.11b/g/n (Wi-Fi 4)
• Frequency Band: 2.4 GHz only
• Max Wireless Speed:
  • Up to 300 Mbps (802.11n)
  • 54 Mbps (802.11g)
  • 11 Mbps (802.11b)
• Transmit Power:
  • CE Region: <20 dBm
  • FCC Region: <30 dBm
• Receive Sensitivity (approximate):
  • 270 Mbps: –71 dBm
  • 130 Mbps: –74 dBm
  • 54 Mbps: –77 dBm
  • 11 Mbps: –91 dBm
  • 1 Mbps: –97 dBm

Software Features

• Operating Modes:
  • Wireless Router
  • Range Extender
  • Access Point
• Wireless Security:
  • 64/128/152-bit WEP
  • WPA / WPA2
  • WPA-PSK / WPA2-PSK
  • WPA/WPA2-Enterprise (802.1x)
• Network Management:
  • Parental Controls
  • Bandwidth Control
  • DHCP Server
  • IP & MAC Binding
  • Access Control
• QoS: Supported
• Tether App: Compatible for remote setup and management

Environmental

• Operating Temperature: 0°C – 40°C
• Storage Temperature: -40°C – 70°C
• Operating Humidity: 10% – 90% non-condensing
• Storage Humidity: 5% – 90% non-condensing
• Certifications: CE, FCC, RoHS

In the Box

• TL-WR841HP Router
• Power Adapter
• Ethernet Cable
• Quick Installation Guide
• 2 Detachable Antennas

---

Key Features

• Superior Range – High power ampli­fiers and high-gain antennas provide enhanced wireless range.
• ­Wall-Penetrating Wi-Fi – Enhanced Wi-Fi signal cuts through walls and obstacles, eliminating dead zones
• ­3 Modes Functionality – Offers three wireless modes, including Router, Range Extender, and Access Point
• ­300Mbps Wireless Speed – Ideal for video streaming, online gaming, and VoIP

---
