Starlink Flat High Performance Kit

The Starlink Flat High Performance Kit is designed to provide enhanced satellite connectivity, especially for mobile users and environments requiring a wider field of view. Below are its key specifications:

---

Antenna (Dish)

• Type: Electronic Phased Array
• Field of View: 140°, allowing it to see 35% more sky and connect to more satellites citeturn0search5
• Orientation: Fixed
• Dimensions: 575 mm x 511 mm x 41 mm (22.6 in x 20.1 in x 1.6 in)
• Weight: 5.9 kg (13 lbs) without cable
• Environmental Rating: IP56 (dust and water-resistant)
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Snow Melt Capability: Up to 75 mm/hour (3 in/hour)
• Wind Resistance: Survivable up to 174 mph

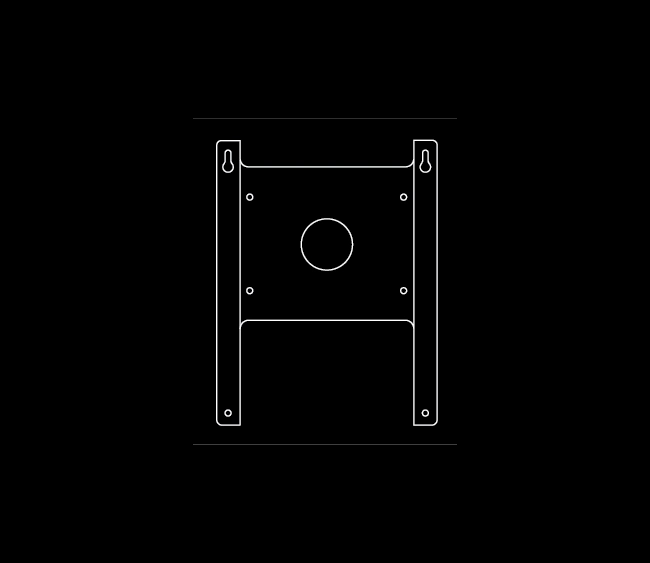

• Mounting: Wedge Mount Kit included
• Average Power Usage: 110-150W

---

Wi-Fi Router

• Wi-Fi Technology: 802.11 a/b/g/n/ac/ax (Wi-Fi 6)
• Radio: Tri-Band 4x4 MU-MIMO
• Ethernet Ports: Two latching LAN ports with removable cover
• Coverage: Up to 297 m² (3,200 ft²)
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Weight: 0.57 kg (1.25 lbs)
• Security: WPA2
• Environmental Rating: IP56 (configured for indoor use)

---

Power Supply

• Dimensions: 288 x 133 x 46 mm (11.3 x 5.2 x 1.8 inches)
• Environmental Rating: IP66
• Operating Temperature: -30°C to 50°C (-22°F to 122°F)
• Weight: 1.5 kg (3 lbs)
• Grounding: Dedicated Earth Terminal
• Power Specifications: 100-240V ~ 6.3A 50-60 Hz

---

Cabling

• Starlink Cable Length: 25 m (82 ft)
• Ethernet Cable Length: 5 m (16.5 ft)
• AC Cable (Power Supply) Length: 1.8 m (6 ft)

---

Performance & Connectivity

• Download Speeds: Typically between 25 and 220 Mbps, with a majority of users experiencing speeds over 100 Mbps
• Upload Speeds: 5–20 Mbps
• Latency: 25–50 ms
• Coverage Area: Global availability, with enhanced capabilities for mobile users
• Service Type: Low Earth Orbit (LEO) Satellite Internet
• Network Management: Controlled via Starlink App (iOS & Android)

---

Additional Features

• Enhanced Satellite Visibility: The wider field of view allows the antenna to see 35% more sky, connecting to more satellites and improving performance, especially for mobile users
• Improved Performance on Vessels: The fixed orientation and wider field of view enable better connectivity on boats, maintaining links to satellites even during movement
• Permanent Vehicle Installation: The included Wedge Mount provides an 8-degree tilt to aid water runoff, facilitating permanent installation on vehicles

---
