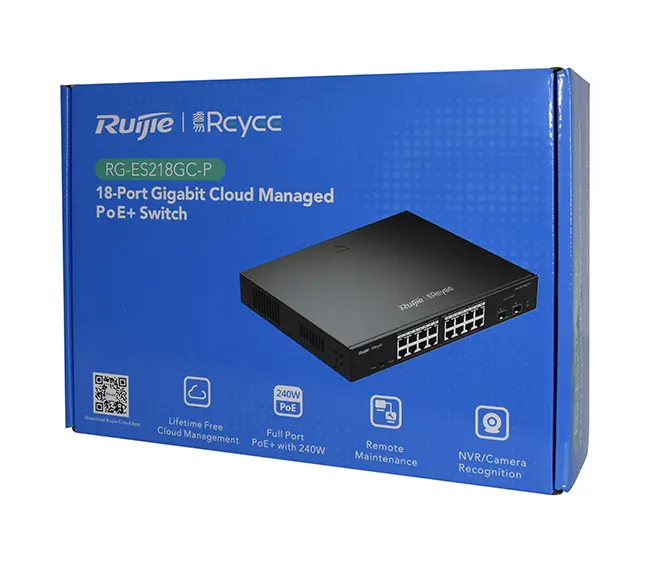

Ruijie RG-ES218GC-P, 18-Port Gigabit Smart Cloud Managed PoE Switch

🧾 Product Overview

The Ruijie RG-ES218GC-P is an 18-port Layer 2 managed PoE+ switch designed for small to medium-sized businesses, educational institutions, surveillance systems, and retail environments. It offers 16 Gigabit Ethernet PoE+ ports and 2 SFP uplink ports, providing a total PoE budget of 240W. This switch is ideal for powering devices like IP cameras, VoIP phones, and wireless access points, while offering cloud-based management for ease of use and scalability.

---

🔧 Key Specifications

• Ports:
  • 16 × 10/100/1000Base-T PoE+ ports
  • 2 × 1000Base-X SFP uplink ports
• PoE Standards: IEEE 802.3af/at
• Maximum PoE Output per Port: 30W
• Total PoE Budget: 240W
• Switching Capacity: 36 Gbps
• Forwarding Rate: 26.78 Mpps
• MAC Address Table: 8,000 entries
• VLAN Support: Up to 16 VLANs (802.1Q)
• Dimensions: 300 mm (W) × 230 mm (D) × 43.6 mm (H)
• Weight: 3.5 kg (with package)
• MTBF:
• Power Consumption: ≤280W
• Power Supply: 100–240V AC, 6A
• Fan: Built-in with adaptive speed adjustment; operates silently below 25°C
• Operating Temperature: 0°C to 40°C
• Operating Humidity: 10% to 90% RH
• Port Surge Protection: 4 kV
• Certifications: CE, RoHS

---

🌐 Cloud Management & Smart Features

• Ruijie Cloud Management: Lifetime free access for remote monitoring, configuration, and firmware updates via web or mobile app.
• Zero-Touch Provisioning (SON): Simplifies deployment and reduces setup time.
• IP Camera Recognition: Automatically detects and optimizes settings for connected IP cameras, enhancing CCTV network performance.
• Loop Prevention: Automatically detects and prevents network loops to ensure service continuity.
• PoE Port Management: Supports individual port reboot and real-time offline alarms for connected devices.
• Extended Transmission: Supports up to 250 meters for PoE connections, ideal for large-scale deployments.
• VLAN Configuration: Allows for VLAN setup via the Ruijie Cloud App, facilitating network segmentation.
• Cable Testing: Enables detection of cable faults and miswiring.

---

📦 Package Contents

• Ruijie RG-ES218GC-P Switch
• Power Adapter
• Quick Start Guide
• Warranty Card
• Mounting Brackets (2)
• Screws (8)

  This switch is particularly well-suited for applications requiring reliable PoE support, such as powering IP cameras, VoIP phones, and wireless access points, while offering the convenience of cloud-based management.

---

Datasheet
