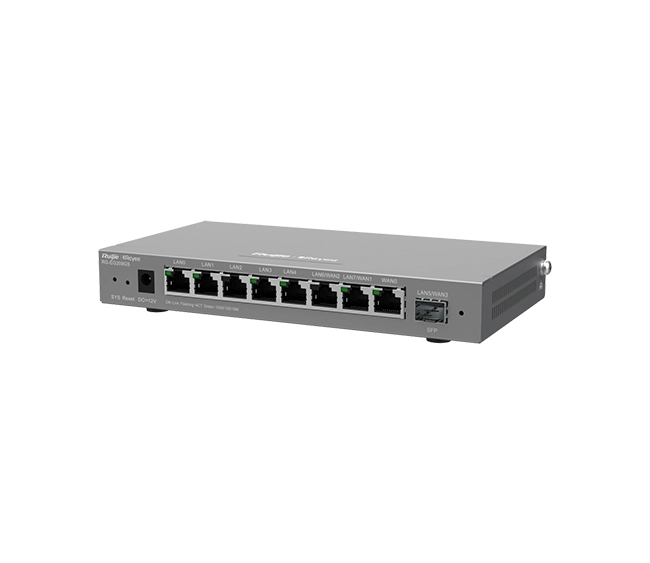

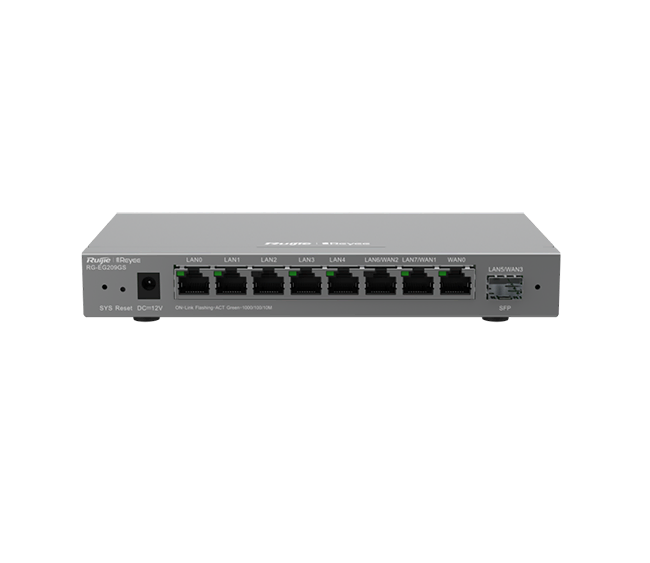

Ruijie RG-EG209GS Reyee 9-Port Gigabit Cloud Managed SFP Router
KSh 13,000(KSh 15,080 Incl VAT)
- 9 ports total – 8 × Gigabit RJ45 + 1 × Gigabit SFP (LAN/WAN)
- Supports up to 4 WAN links – with intelligent load balancing & failover
- 600 Mbps throughput – 430 Mbps with full services (NAT, DPI, etc.)
- Supports up to 200 clients – ideal for SMEs, schools, retail, CCTV setups
- VPN support – IPsec, L2TP, PPTP, OpenVPN
- Advanced security – ACLs, anti-DoS, firewall, port scan protection
- Smart traffic control – QoS, user/app-based limits, real-time auditing
- Cloud-managed – via Ruijie Cloud & Reyee App (zero-touch setup)
- Manages up to 150 APs + 128 switches
- Fanless & compact design – low noise, wall-mountable
SKU: RG‑EG209GSCategory: Networking Infrastructure
Here are the detailed specifications for the RG‑EG209GS—a 9‑port Gigabit cloud‑managed router with SFP, suitable for offices, hotels, schools, CCTV systems, and more:
🔌 Physical Interfaces
- RJ45 Ethernet Ports (8 total):
- 1 × fixed WAN
- 7 × fixed LAN
- Up to 3 of the LAN ports interchangeable as WAN, supporting up to 4 WAN links
- SFP Slot (1 Gb/s): Can be configured as LAN or WAN for fiber connectivity
⚙️ Performance & Hardware
- Processor: Dual-core 880 MHz
- Memory: 256 MB DDRIII RAM, 32 MB SPI flash
- Throughput:
- Up to 600 Mbps (NAT + flow audit)
- ~430 Mbps with full services (NAT + authentication, DPI, flow control)
- Concurrent Users: Supports up to 200 clients
🌐 Networking Features
- Multi‑WAN: Load balancing and failover with up to 4 WAN ports
- Routing: PPPoE client/server, DHCP, static IP
- VLAN: Supports up to 8 VLANs; IPv6, IPTV support
- QoS & Traffic Control: Smart flow control, user/app-based limits, diagnosis, real-time auditing
🔐 Security & VPN
- VPN Protocols Supported: IPsec, L2TP, PPTP, OpenVPN
- Max tunnels: 8 IPsec, 8 L2TP, 16 OpenVPN
- Approx. VPN throughput: IPsec 28 Mbps, L2TP 190 Mbps, OpenVPN 20 Mbps
- Firewall & Protection: ACLs, anti-flood, port-scan, SYN/Smurf/Land/Teardrop/ping‑of‑death mitigation
- Captive Portal & Authentication: WiFiDog, vouchers, SMS, QR code, portal/password login
☁️ Management & Cloud
- Cloud management via Ruijie Cloud & Reyee App; zero‑touch auto-setup
- Scalable control: As a gateway, can manage up to 150 APs/NBS + 128 switches; in AC mode up to 500 APs + 128 switches
- Portal customization: WYSIWYG captive portal pages
🛠️ Physical & Environmental
- Form Factor: Desktop (wall-mountable), fanless, compact
- Dimensions: 202 × 108 × 28 mm
- Weight: ~0.5 kg
- Power: 12 V / 1.5 A DC; consumption ≤ 18 W
- Operating Conditions: 0–40 °C; humidity 10–90% non-condensing; IP20; surge protection (~4 kV)
- Certifications: CE, RoHS, 3‑year warranty
✅ Summary
The RG‑EG209GS is a versatile, cost-effective cloud-managed router featuring 8 GigE ports, 1 SFP, and expandable 4-WAN support. With robust throughput (~600 Mbps), solid VPN, firewall protection, QoS, captive portal, and the ability to serve up to 200 users, it’s an excellent solution for SMBs, retail, education, and surveillance deployments. DatasheetRelated Products
