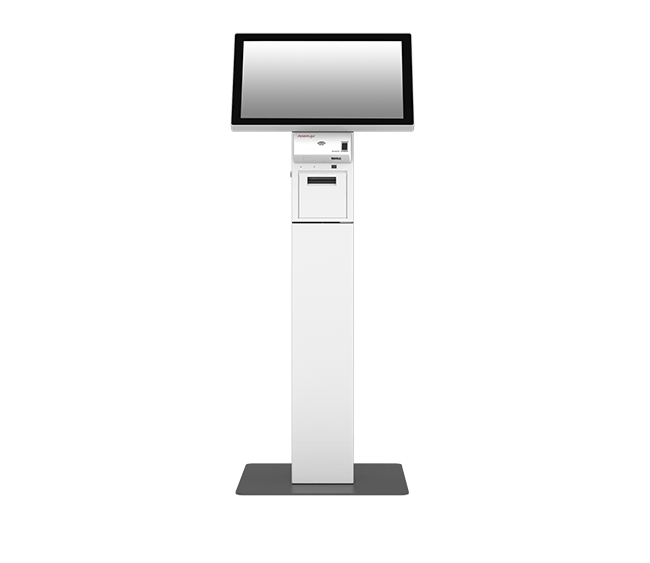

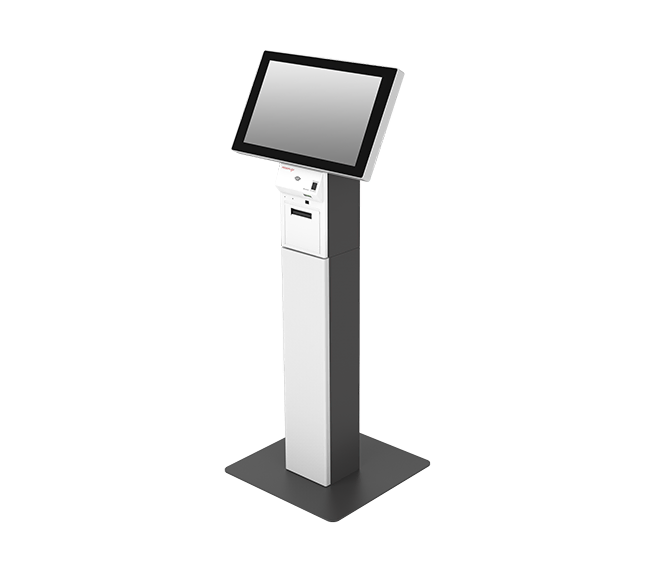

Posiflex EK-2150 Interactive Kiosk

The Posiflex EK-2150 is a high-end self-service interactive kiosk built for commercial environments requiring speed, reliability, and user engagement. Featuring a portrait-oriented P-CAP touchscreen, Intel Core i3-7100U processor, Windows 10 IoT LTSB (64-bit), and a suite of integrated peripherals including camera, printer, 2D scanner, Wi-Fi, and payment bracket, the EK-2150 delivers a premium, all-in-one solution ideal for retail, banking, ticketing, and hospitality automation.

---

Detailed Specifications

Display & Design

• Display Type: Projected Capacitive (P-CAP) Touchscreen
• Display Orientation: Portrait layout
• Glass: Standard (without anti-glare coating)
• Camera: Built-in front-facing camera for image capture or verification
• Status Indicator: SI-100 LED system indicator
• Color: Black, commercial-grade enclosure
• Mounting: Integrated pedestal base for stable floor installation

Performance & Hardware

• Processor: Intel® Core™ i3-7100U (Kaby Lake-U, Dual-core, 2.4GHz)
• Operating System: Windows 10 IoT Enterprise LTSB (64-bit, English version)
• Memory (RAM): 4GB DDR4 DRAM
• Storage: 64GB M.2 SSD for fast, reliable performance
• Graphics: Integrated Intel® HD Graphics 620
• Power Supply: UK power cord, 220V AC input
• Cooling: Fanless design for quiet, reliable operation

Connectivity & Communication

• Wireless Connectivity: Wi-Fi module (WF660EK)
• 4G Connectivity: Not supported
• Ethernet: RJ45 LAN port for wired connectivity
• USB Ports: Multiple USB 2.0/3.0 ports for expansion
• Audio: Built-in speaker support
• Other Interfaces: Standard RS-232 serial ports

Integrated Peripherals

• Printer:
  • Model: PP7600EK00000
  • Type: Thermal printer, 512 dots per line
  • Language Support: English, West Europe
• Barcode Scanner:
  • Model: CD3601EK
  • Type: 2D barcode scanner (supports all 1D/2D formats)
• Camera: Integrated camera for facial capture or ID purposes
• Status Indicator: SI-100 LED module for operational status feedback
• Wi-Fi Module: WF660EK for wireless connectivity
• Payment Device Bracket: EB-200EK – supports Verifone VX-820 terminal
• Pedestal: Standard Posiflex pedestal base for secure installation

Compatibility & Software

• Operating System: Windows 10 IoT Enterprise LTSB 64-bit
• Software Environment: Supports POS, check-in, ticketing, or kiosk management applications
• Integration: Compatible with external payment systems (via EB-200EK bracket)
• Intended Use Cases:
  • Retail self-service kiosk
  • Hotel check-in/out terminal
  • Ticket vending or queue management
  • Banking service kiosk

Physical & Environmental

• Construction: Ruggedized metal and ABS housing for continuous operation
• Operating Temperature: 0°C to 40°C
• Humidity: 20% – 80% RH (non-condensing)
• Color: Professional black finish
• Cooling System: Fanless for silent and dust-free operation

---

Key Features

• Intel Core i3-7100U processor for superior kiosk performance
• Windows 10 IoT LTSB for enterprise-grade stability and control
• Portrait P-CAP touchscreen with integrated camera
• Thermal printer and 2D scanner for complete self-service functionality
• Wi-Fi (WF660EK) for seamless wireless operation
• Bracket for Verifone VX-820 payment terminal for transaction-ready setups
• Fanless design ensures durability and silent operation
• Elegant pedestal structure for professional retail and hospitality environments

---

Meta Description

Posiflex EK-2150 Interactive Kiosk – 21.5″ portrait P-CAP touchscreen terminal powered by Intel i3-7100U, Windows 10 IoT, 4GB RAM, 64GB SSD, built-in camera, printer, 2D scanner, Wi-Fi, and payment bracket. Ideal for retail, ticketing, and hospitality self-service applications.
