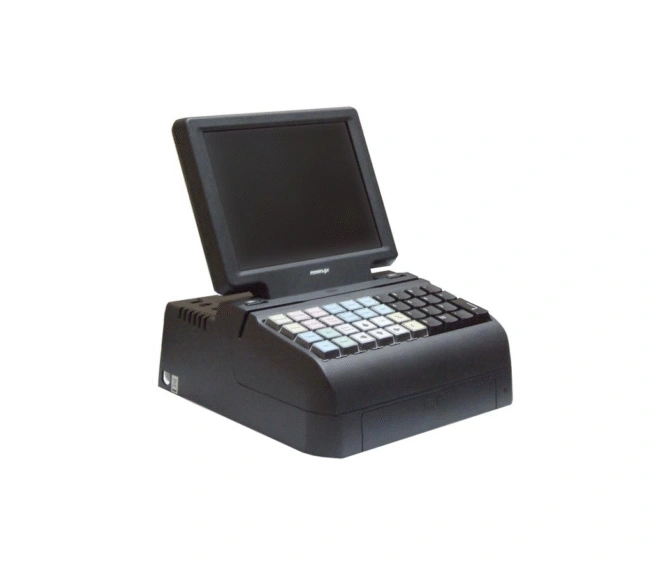

Posiflex DT-208H-B Mini POS Terminal

The Posiflex DT-208H-B is a compact, fanless 8-inch touch POS terminal designed for retail and hospitality applications that demand reliability and quiet performance. Equipped with an AMD LX700 processor, 512MB RAM, 40GB IDE HDD, and a 40-key programmable LINCE keyboard, it delivers dependable operation in space-limited environments. Its touch-enabled display enhances user interaction while maintaining Posiflex’s industrial-grade durability and flexibility across WEPOS, POSReady, and Linux operating systems.

---

Detailed Specifications

Display & Design

• Display Size: 8-inch LCD
• Resolution: 800 × 600 (SVGA)
• Touchscreen: Resistive touch panel
• Aspect Ratio: 4:3
• Display Type: TFT LCD
• Design: Fanless, compact, and optimized for silent operation
• Color: Black

Performance & Hardware

• Processor: AMD LX700, 433MHz, 433 FSB
• Memory: 512MB DDR RAM
• Storage: 40GB IDE HDD
• Graphics: Integrated graphics with shared memory
• Cooling System: Passive fanless cooling for noise-free operation

Operating System Compatibility

• Supported OS:
  • WEPOS (Windows Embedded for Point of Service)
  • Windows POSReady
  • Linux

Input & Control

• Keyboard: 40-key LINCE programmable POS keyboard
  • Fully programmable for shortcut keys and macros
  • Customizable to suit diverse POS software

Connectivity & Expansion

• I/O Interfaces:
  • RS-232 serial ports
  • USB ports
  • Parallel port
  • PS/2 keyboard/mouse ports
  • VGA output (optional)
  • LAN (Ethernet) port

Physical & Environmental

• Construction: Rugged industrial-grade casing
• Cooling: Fanless operation for durability and dust resistance
• Operating Temperature: 0°C – 40°C
• Storage Temperature: -20°C – 60°C
• Humidity: 20% – 80% RH (non-condensing)

Power & Efficiency

• Power Supply: External power adaptor
• Energy Efficiency: Designed for low power consumption and long operational life

Compatibility & Use Cases

• POS Software Support: Compatible with most Windows- and Linux-based POS systems
• Applications:
  • Retail point-of-sale counters
  • Restaurant ordering stations
  • Kiosk management terminals
  • Inventory and warehouse data stations

---

Key Features

• 8-inch fanless touch POS terminal with 800×600 resolution
• AMD LX700 433MHz processor for stable operation
• 512MB DDR RAM and 40GB IDE HDD for efficient data processing
• Resistive touch panel for precise input
• 40-key programmable LINCE keyboard
• Supports WEPOS, POSReady, and Linux operating systems
• Compact and fanless design for silent, reliable operation

---
