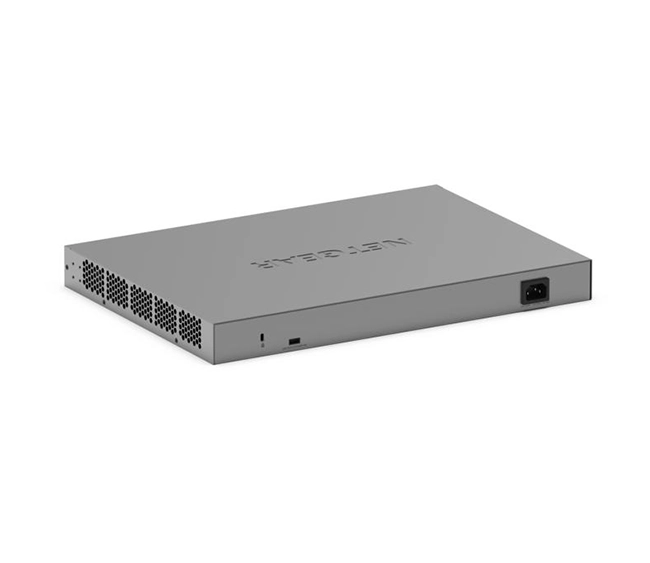

Netgear GS752TXP-300UKS – 48-Port Gigabit PoE+ Smart Managed Pro Switch

The Netgear GS752TXP-300UKS – 48-Port Gigabit PoE+ Smart Managed Pro Switch is a 48-port Gigabit Smart Managed Pro switch with advanced PoE+ support and 10G SFP+ uplinks, ideal for medium to large enterprise networks. With 48 Gigabit PoE+ ports delivering power and data over a single cable, plus 4 dedicated 10G SFP+ uplink ports, it ensures high-speed connectivity, scalability, and reliable power delivery for VoIP phones, Wi-Fi access points, surveillance systems, and IoT devices.

---

Ports & Connectivity

• Total Ports: 52
  • 48 × 10/100/1000 Mbps Gigabit RJ-45 PoE+ ports
  • 4 × dedicated 10G SFP+ uplink ports (fiber or copper modules supported)
• PoE Standards Supported:
  • IEEE 802.3af (PoE – up to 15.4W per port)
  • IEEE 802.3at (PoE+ – up to 30W per port)
• Maximum Power per Port: 30W (PoE+)
• Total PoE Budget: 760W

---

Performance

• Switching Capacity: 176 Gbps non-blocking
• Forwarding Rate: 130.9 Mpps
• MAC Address Table: 16,000 entries
• Jumbo Frames: Supports up to 9,216 bytes

---

Smart Managed Pro Features

• VLANs: 802.1Q VLAN tagging, port-based VLANs, voice VLANs
• QoS: Advanced prioritization for video, VoIP, and data traffic
• IGMP Snooping v1/v2/v3 for optimized multicast streaming
• Link Aggregation: LACP (IEEE 802.3ad) for bandwidth pooling
• Security: Access Control Lists (ACLs), DHCP Snooping, DoS prevention, 802.1X authentication
• Layer 3 Lite: Static routing for simplified network segmentation
• Monitoring: SNMP v1/v2c/v3, RMON, port mirroring
• Management Options: Web GUI, CLI, Insight Cloud management, dual firmware images

---

Power & Energy

• PoE Budget: 760W across 48 ports
• PoE+ Support: Perfect for powering access points, cameras, and VoIP phones
• Energy Efficient Ethernet (EEE) for reduced power consumption

---

Design & Build

• Form Factor: 1U Rack-mountable metal enclosure
• Cooling: Multiple smart fans for temperature control
• LED Indicators: Power, Port Link/Activity, Speed, and PoE status

---

Physical Specifications

• Dimensions (W × D × H): 440 × 310 × 43 mm
• Weight: ~6.0 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: –20°C to 70°C
• Operating Humidity: 10–90% non-condensing

---

Warranty & Support

• Warranty: Netgear Limited Lifetime Hardware Warranty
• Support: Lifetime 24/7 technical support (with registration) + next-business-day hardware replacement

---

Typical Use Cases

• Enterprise offices powering large numbers of VoIP phones and Wi-Fi APs
• Surveillance networks with PoE+ IP cameras
• Education and healthcare environments needing scalable PoE
• SMBs and enterprises requiring 10G fiber uplinks for fast aggregation

---

Key Features

• 48 × Gigabit PoE+ ports with 760W total PoE budget
• 4 × dedicated 10G SFP+ uplink ports for high-speed fiber backhaul
• Enterprise-grade Smart Managed Pro features (VLANs, QoS, Security, L3 Lite)
• Rack-mountable 1U design with efficient cooling system
• Scalable, reliable, and power-efficient solution for large networks

---

Meta Description

Netgear GS752TXP-300UKS – 48-Port Gigabit PoE+ Smart Managed Pro Switch with 48 PoE+ Gigabit ports, 760W power budget, and 4 × 10G SFP+ uplinks. Designed for enterprise, surveillance, and high-performance business networks. Datasheet
