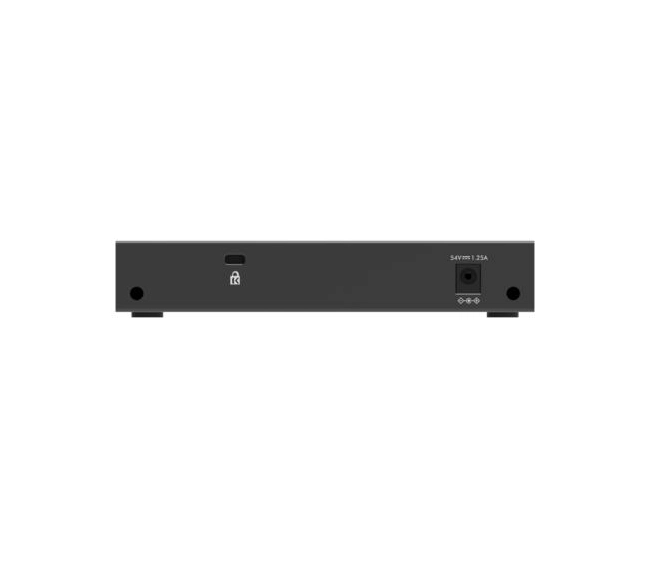

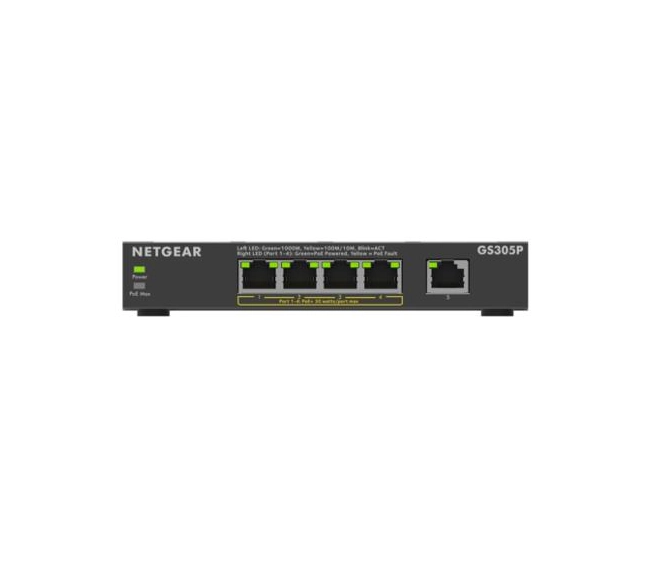

Netgear GS305P-300UKS 5-Port Gigabit Unmanaged Switch with PoE+

The Netgear GS305P-300UKS 5-Port Gigabit Unmanaged Switch with PoE+ is a compact unmanaged Gigabit switch that provides reliable wired connectivity with Power over Ethernet Plus (PoE+) support. With 5 Gigabit RJ-45 ports, including 4 × PoE+ ports for powering IP cameras, VoIP phones, wireless access points, and IoT devices, this switch is ideal for small-scale setups that need both data and power delivery over a single cable.

---

Ports & Connectivity

• Total Ports: 5 × 10/100/1000 Mbps RJ-45 ports
• PoE Ports: 4 × PoE+ ports (IEEE 802.3af/at compliant)
• Non-PoE Ports: 1 × Gigabit RJ-45 port (uplink or regular data)
• Auto Uplink (MDI/MDIX) for easy device connections
• PoE Power Budget: Up to 63 W shared across 4 PoE+ ports
• Per-Port PoE Power: Up to 30 W per port

---

Performance

• Switching Capacity: 10 Gbps non-blocking
• Forwarding Rate: 7.4 Mpps (64-byte packets)
• MAC Address Table: 2,000 entries
• Packet Buffer Memory: 128 KB
• Jumbo Frame Support: Up to 9,216 bytes

---

Build & Design

• Housing: Fanless, silent operation with metal enclosure
• Mounting Options: Desktop or wall-mountable (mounting kit included)
• LED Indicators: Power, Link/Activity, PoE status

---

Power & Energy Efficiency

• Power Supply: External adapter (included)
• Max Power Consumption: 63.7 W (full PoE load)
• Energy Efficient Ethernet (EEE): IEEE 802.3az compliant

---

Physical Specifications

• Dimensions (W × D × H): 94 × 100 × 27 mm
• Weight: ~0.26 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: –20°C to 70°C
• Humidity: 10%–90% non-condensing
• Noise Level: 0 dBA (fanless design)

---

Warranty & Support

• Hardware Warranty: 3-Year Limited Warranty
• Support: 24/7 chat support, 90-day phone support

---

Typical Use Cases

• Powering IP security cameras in small offices or homes
• Running VoIP phones without separate power adapters
• Supplying PoE wireless access points for extended Wi-Fi coverage
• Small office/home office wired network expansion

---

Key Features

• 5 × Gigabit Ethernet ports with 4 PoE+ (up to 30W each, 63W total budget)
• Plug-and-play unmanaged switch for easy deployment
• Silent, fanless metal housing for quiet environments
• Supports jumbo frames, auto-negotiation, and auto-MDI/MDIX
• Compact and energy-efficient design

---

Meta Description

Netgear GS305P-300UKS 5-Port Gigabit Unmanaged Switch with PoE+, 4 × PoE+ ports (63W budget), fanless metal design, and plug-and-play setup—ideal for powering IP cameras, VoIP, and Wi-Fi access points. Datasheet
