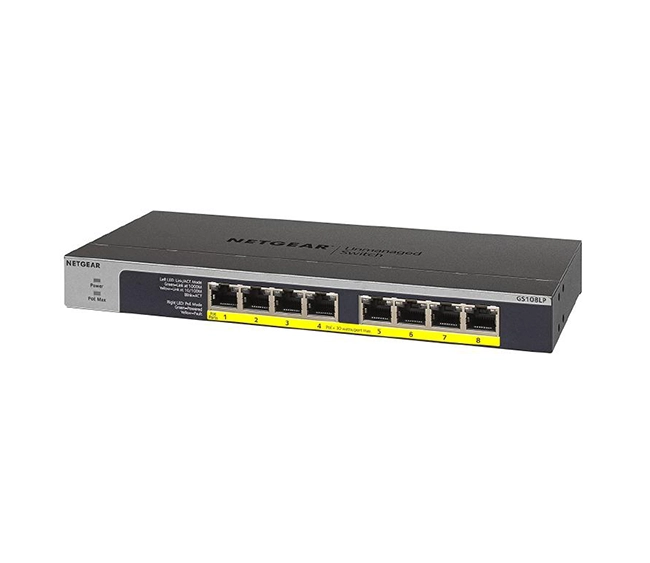

Netgear GS108LP-100EUS 8-Port PoE+ Gigabit Unmanaged Switch

The Netgear GS108LP-100EUS 8-Port PoE+ Gigabit Unmanaged Switch is an unmanaged 8-port Gigabit switch with PoE+ support on all 8 ports, delivering up to 30W per port with a flexible total PoE budget. It is ideal for powering IP cameras, VoIP phones, access points, and IoT devices without requiring complex configuration. With fanless operation, metal housing, and expandable power budget options, it combines reliability, efficiency, and silent performance.

---

Ports & Connectivity

• Total Ports: 8 × 10/100/1000 Mbps RJ-45 Gigabit Ethernet
• PoE Support: IEEE 802.3af (PoE) and IEEE 802.3at (PoE+)
• PoE Budget:
  • Default: 60 W (via included power adapter)
  • Expandable: 83 W or 123 W (with optional higher-rated power adapters)
• Max Power per Port: Up to 30 W

---

Performance

• Switching Capacity: 16 Gbps non-blocking fabric
• Forwarding Rate: 11.9 Mpps
• MAC Address Table: 4,000 entries
• Packet Buffer Memory: 192 KB
• Jumbo Frame Support: Up to 9,216 bytes

---

Design & Build

• Form Factor: Desktop or wall-mountable metal case
• Cooling: Fanless (silent operation)
• LED Indicators: Power, Link/Activity, PoE status per port

---

Energy Efficiency

• IEEE 802.3az Energy Efficient Ethernet (EEE) support
• Automatic power-saving on short or inactive cable runs

---

Power & Consumption

• Default Power Supply: 60 W external power adapter
• Maximum Power Consumption: ~63 W under full PoE load

---

Physical Specifications

• Dimensions (W × D × H): 158 × 101 × 27 mm
• Weight: ~0.44 kg

---

Environmental Conditions

• Operating Temperature: 0°C to 40°C
• Storage Temperature: –20°C to 70°C
• Humidity: 10%–90% non-condensing
• Noise Level: 0 dBA (fanless design)

---

Warranty & Support

• Hardware Warranty: Netgear Limited Lifetime Warranty
• Support: Lifetime Next Business Day (NBD) hardware replacement with registration

---

Typical Use Cases

• Powering IP cameras for surveillance
• Running VoIP phones in small office setups
• Providing power and connectivity to wireless access points
• Ideal for silent deployments in offices, retail, classrooms, and small meeting rooms

---

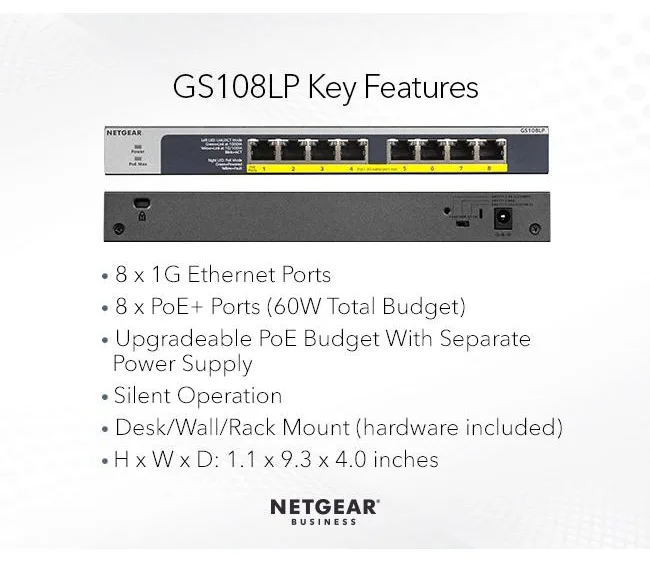

Key Features

• 8 Gigabit ports with full PoE+ support
• Flexible PoE budget (60 W default, expandable up to 123 W)
• Fanless, silent, and compact metal housing
• Plug-and-play operation with zero configuration required
• Energy-efficient with IEEE 802.3az support

---

Meta Description

Netgear GS108LP-100EUS 8-Port PoE+ Gigabit Unmanaged Switch with 60W PoE budget (expandable up to 123W), fanless metal design, and plug-and-play simplicity—ideal for powering IP phones, cameras, and access points. Datasheet
