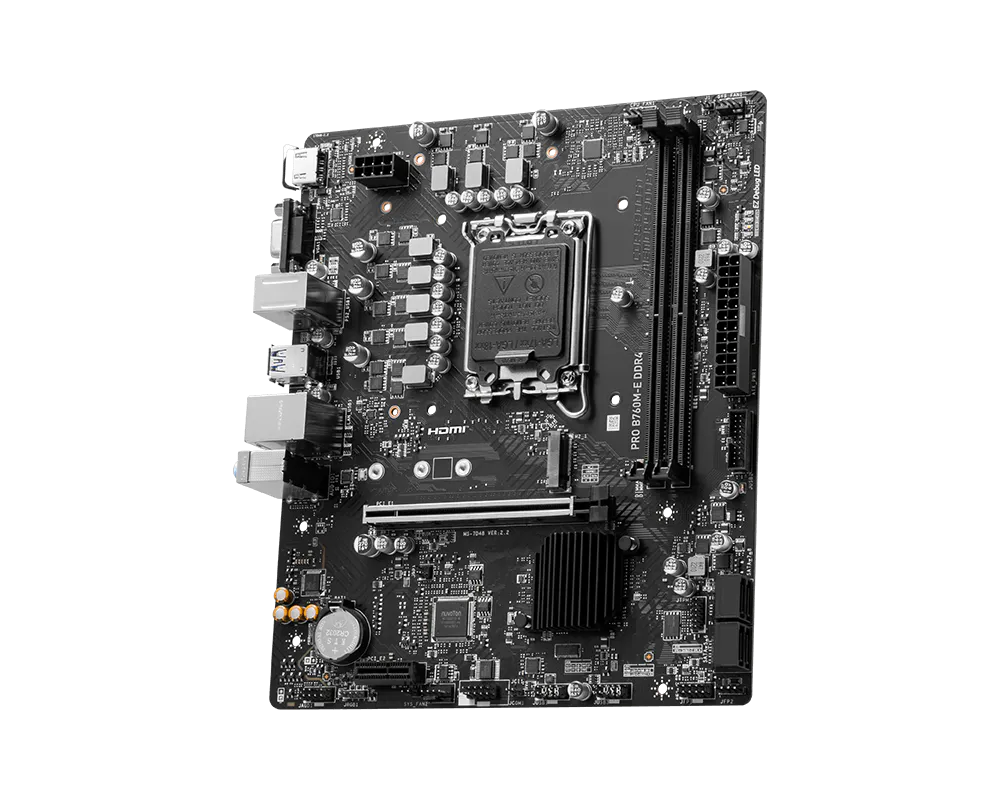

MSI PRO B760M-E DDR4 B760 Motherboard 911-7D48-061

Datasheet

Short Description

The MSI PRO B760M-E DDR4 Motherboard (911-7D48-061) is a business-oriented Micro-ATX board built on the Intel B760 chipset, designed to deliver reliable performance for professional, gaming, and home office PC builds. Supporting Intel's latest 14th, 13th, and 12th Generation Core processors, this motherboard offers a solid foundation with DDR4 memory support, PCIe 4.0 expansion, and comprehensive connectivity . The PRO Series is tailored to professionals who care about productivity and efficiency, helping users with multitasking and increasing efficiency .

Key Sections

Intel B760 Chipset and LGA 1700 Platform Support

The PRO B760M-E DDR4 is built around the Intel B760 chipset and the LGA 1700 socket, supporting a wide range of Intel processors. It is compatible with Intel Core 14th, 13th, and 12th Generation processors, as well as Intel Pentium Gold and Celeron processors . This compatibility makes it a versatile and future-proof foundation for a variety of PC builds, from business workstations to capable gaming rigs.

DDR4 Memory Support and Overclocking

The motherboard includes 2 DDR4 DIMM slots, supporting a maximum capacity of up to 64GB of memory . It supports overclocked speeds up to 4800+ MHz (with 1DPC 1R configuration) , and with Intel XMP technology, users can easily enable memory overclocking profiles for a significant boost in performance . The Memory Boost technology delivers pure data signals for the best performance, stability and compatibility .

PCIe 4.0 Expansion and Storage Options

The PRO B760M-E DDR4 is equipped with a PCIe 4.0 x16 slot with Steel Armor technology, protecting graphics cards against bending and electromagnetic interference for better performance and stability . It also features one PCIe 3.0 x1 slot for additional expansion cards . For storage, it provides one M.2 Gen4 slot supporting PCIe 4.0 x4 speeds (up to 64Gbps) and four SATA 6Gb/s ports . The M.2 slot supports 2280, 2260, and 2242 devices .

Comprehensive Connectivity and Audio

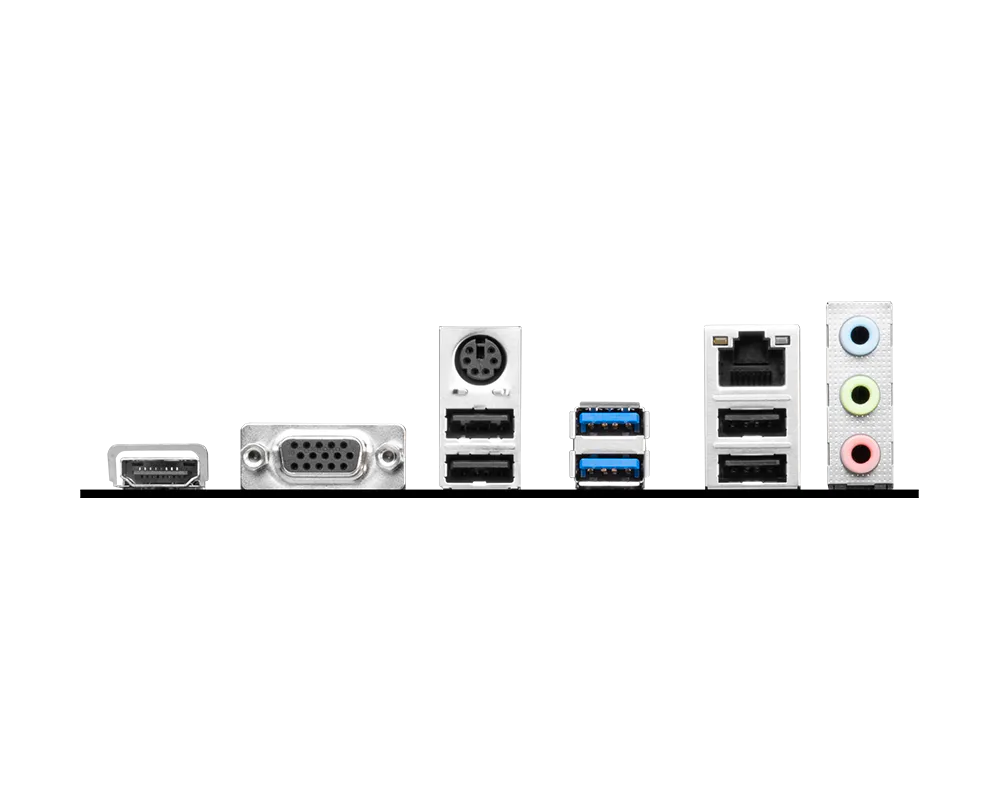

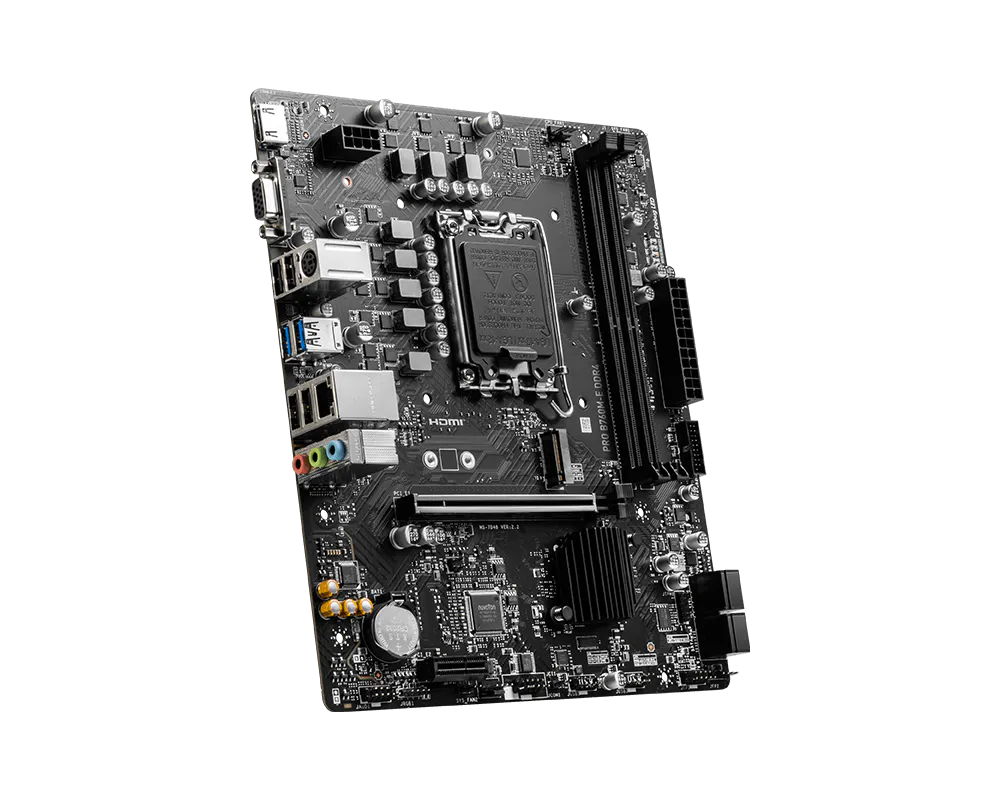

The motherboard offers a robust selection of rear I/O ports, including HDMI 1.4 (supporting 4K at 30Hz with HDR), VGA for legacy display compatibility, multiple USB 3.2 Gen 1 Type-A ports, and USB 2.0 ports . It features a Realtek RTL8111H Gigabit LAN controller for a premium wired network experience . The Realtek ALC897 codec delivers 7.1-channel High Definition Audio with Audio Boost for an immersive sound experience .

User-Friendly Features and Cooling

The PRO B760M-E DDR4 includes several features that make building and maintaining your PC simple. The EZ Debug LED system provides simple diagnostics to help troubleshoot hardware issues . The board is designed with passive chipset cooling and supports Frozr AI Cooling, which automatically adjusts system fan settings based on CPU and GPU temperatures . A TPM 2.0 pin header is also included for enhanced security .

Core Features

• Consequently, the Intel B760 chipset and LGA 1700 socket support the latest Intel processors for a powerful and versatile system.

• In addition, the DDR4 memory with overclocking support up to 4800+ MHz provides high-speed data throughput and system responsiveness .

• Furthermore, the PCIe 4.0 x16 slot and Gen4 M.2 slot provide next-generation bandwidth for graphics and storage .

• Specifically, the business-oriented design with HDMI, VGA, and Gigabit LAN offers broad compatibility and reliable connectivity .

• Ultimately, the robust power design and user-friendly features ensure stable performance and a smooth building experience .

Technical Specifications Summary

• Model / Part Number: MSI PRO B760M-E DDR4 (911-7D48-061)

• Chipset: Intel B760

• Form Factor: Micro-ATX (200mm x 236.16mm)

• CPU Support: Intel 14th, 13th, and 12th Gen Core, Pentium Gold, Celeron (LGA 1700)

• Memory: 2x DDR4 DIMM Slots, up to 64GB, 4800+ MHz (OC)

• Expansion Slots: 1x PCIe 4.0 x16 (Steel Armor), 1x PCIe 3.0 x1

• Storage: 1x M.2 Gen4, 4x SATA 6Gb/s

• Networking: Realtek RTL8111H Gigabit LAN

• Audio: Realtek ALC897 7.1 HD Audio

• Display Outputs: HDMI 1.4 (4K 30Hz), VGA

• USB Ports: 4x USB 3.2 Gen 1 Type-A (Rear/Front), 8x USB 2.0 (Rear/Front)

• Cooling Features: Passive chipset heatsink, Frozr AI Cooling, multiple fan headers
