MikroTik RBcAPL-2nD (cAP lite)

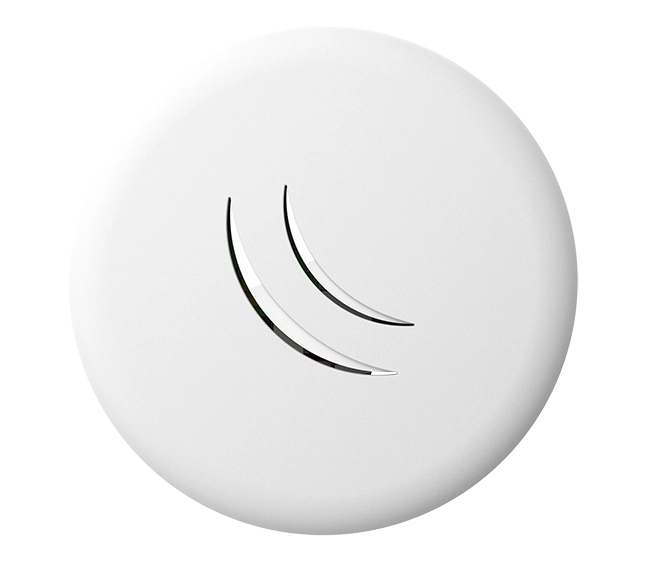

The MikroTik RBcAPL-2nD (cAP lite), also known as the cAP lite, is an ultra-compact 2.4 GHz ceiling or wall-mountable access point. Designed for minimal visibility in home or enterprise environments, it features a clean aesthetic, low power consumption, and full RouterOS capabilities. It is particularly suited for hospitality or office environments where a discreet yet reliable wireless solution is required.

---

🧠 Core Hardware Specifications

• Model: RBcAPL-2nD
• Product Name: cAP lite
• CPU: QCA9533, 650 MHz
• Architecture: MIPS 32-bit
• RAM: 64 MB
• Storage: 16 MB Flash
• Operating System: RouterOS
• License Level: 4

---

📶 Wireless Specifications

• Wireless Standards: 802.11b/g/n (Wi-Fi 4)
• Frequency Band: 2.4 GHz only
• Chains: 1x1 SISO
• Maximum Data Rate: 150 Mbps
• Antenna Gain: ~1.5 dBi (integrated)
• Wireless Modes: AP, client, bridge, repeater, WDS

---

🌐 Networking Interfaces

• Ethernet Ports:
  • 1 × 10/100 Mbps Fast Ethernet
  • Supports passive PoE-in

---

⚡ Powering Options

• Power Input Options:
  • MicroUSB (5 V DC)
  • Passive PoE-in (10–60 V DC)
• Power Consumption: Max 4 W
• PoE Standards Supported: Passive (non-802.3af)
• Power Adapter Included: Yes

---

🔐 Software & Features

• RouterOS Level 4: Supports AP and bridge mode
• Firewall & NAT: Fully supported
• VPN: Basic support for PPTP, L2TP, IPsec
• Management Interfaces: Winbox, WebFig, SSH, Telnet, CLI
• Monitoring Tools: Ping, Torch, Traffic monitor, Packet Sniffer
• Deployment Tools: CAPsMAN compatible (central management)

---

📦 Physical & Environmental

• Enclosure: Plastic, wall/ceiling-mountable
• Dimensions: 88 × 52 × 20 mm
• Weight: ~69 g

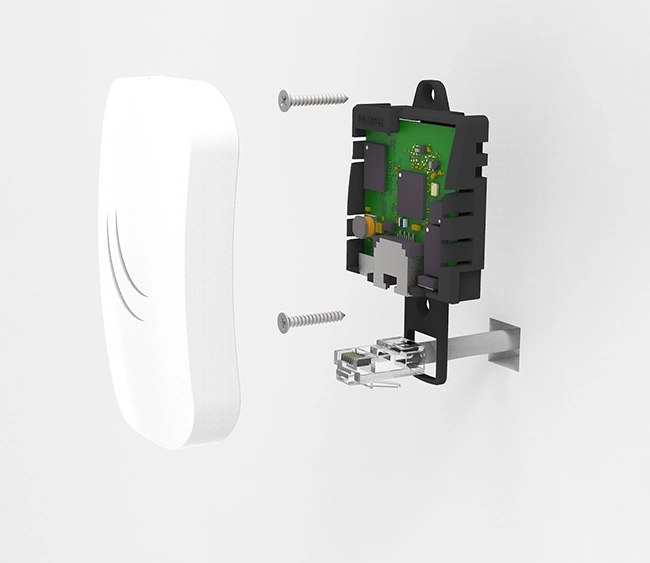

• Mounting Options:
  • Wall-mount bracket included
  • Desktop or ceiling placement
• Operating Temperature: -20°C to +70°C
• Cooling: Passive

---



📝 Meta Description

MikroTik RBcAPL-2nD (cAP lite) is a compact 2.4 GHz ceiling or wall-mountable access point with 150 Mbps throughput, PoE-in or microUSB power, and RouterOS Level 4 license—ideal for hospitality, office, or discreet indoor wireless coverage. Datasheet
