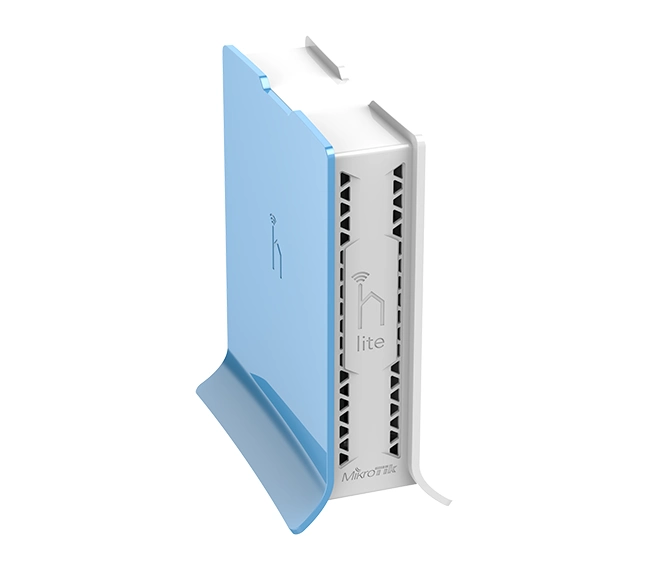

MikroTik RB941-2nD-TC (hAP lite TC)

The MikroTik RB941-2nD-TC (hAP lite TC) is a compact, versatile router and wireless access point designed for small homes, offices, or travel use. It expands upon the standard hAP lite by adding USB power input flexibility and configurable LED behavior, while retaining core RouterOS features.

---

Core Specifications

• Model: RB941-2nD-TC (hAP lite TC)
• CPU: QCA9533, single-core @ 650 MHz
• Architecture: SMIPS
• RAM: 32 MB DDR
• Storage: 16 MB Flash

---

Wireless

• Frequency: 2.4 GHz only (802.11b/g/n)
• Max Wi-Fi Speed: 300 Mbps
• Antenna: 2× integrated, ~1.5 dBi, 2×2 MIMO

---

Networking & Ports

• Ethernet: 4 × 10/100 Mbps Fast Ethernet ports
• USB-C Power Input: 5–12 V via USB-C (can also run from 5 V micro‑USB)
• Buttons: WPS and Reset
• LED Modes: Configurable brightness and behavior

---

Power & Performance

• Power Source: USB-C or micro-USB, 5–12 V input
• Typical Power Draw: ~3–4 W
• Cooling: Fully passive, fanless

---

Software & Features

• Operating System: RouterOS
• License Level: 4 (supports routing, firewall, NAT, VLANs, DHCP, VPN, CAPsMAN)
• Management: Winbox, WebFig, CLI, SNMP

---

Form Factor & Environment

• Enclosure: Compact desktop plastic design
• Dimensions: 113 × 89 × 28 mm
• Weight: ~130 g
• Operating Range: –20 °C to +60 °C

---

Ideal Use Cases

• Affordable home Wi-Fi router
• USB-powered travel/router device
• Classroom or lab setups requiring CAPsMAN management
• Low-profile office or meeting room access point

---

Meta Description: MikroTik RB941-2nD-TC (hAP lite TC) is a compact, USB-C powered 2.4 GHz router with 4 Fast Ethernet ports, RouterOS Level 4, configurable LEDs, and fanless design—ideal for small homes, offices, or travel setups. Datasheet
