MikroTik CSS610-8G-2S+IN Cloud Router Switch
KSh 17,701(KSh 20,533 Incl VAT)
- 8× Gigabit Ethernet ports
- 2× 10G SFP+ cages for high-speed uplinks
- Fanless, silent desktop design with included rackmount ears
- SwOS: lightweight web-managed OS
- Power input via DC jack or Passive PoE (12–57V)
- Low power consumption: ~5W idle, ~11W max
- Advanced L2 features: VLANs, traffic shaping, MAC filtering
- Compact 1U form factor
SKU: CSS610-8G-2S+INCategory: Networking Infrastructure
MikroTik CSS610-8G-2S+IN is a smart, silent switch with 8 Gigabit ports, 2x 10G SFP+ uplinks, SwOS management, and rackmount options—ideal for high-performance home or office networks.
Here are the detailed specifications for the MikroTik CSS610-8G-2S+IN ("Cloud Smart Switch 610‑8G‑2S+IN"):🧠 Core Hardware & Design
- Product Code: CSS610‑8G‑2S+IN
- Switch Chip: Marvell 88E6193X
- Storage: 64 KB onboard FLASH for SwOS
- MTBF: ~100 k–200 k hours at 25 °C
- Operating Temp: –20 °C to +60 °C
- Dimensions: 200 × 167 × 46 mm (1U desktop form, rack‑ears included)
🔌 Connectivity & Ports
- Ethernet Ports: 8 × 10/100/1000 Mbps RJ45
- Fiber/Uplink Ports: 2 × 10G SFP+ cages
⚙️ Power & Cooling Options
- Power Inputs:
- DC jack: 12–57 V
- Passive PoE‑IN (on DC jack port): 12–57 V
- Power Draw:
- Idle (no connections): ~5 W
- Maximum: ~11 W
- Cooling: Fully passive, fan‑less design
🧾 Software & Features
- Operating System: SwOS (web-managed, lightweight)
- Management Features: VLANs, port-to-port forwarding, broadcast storm control, MAC filtering, traffic mirroring, bandwidth limiting, header editing (MAC/IP), etc.
📦 Physical & Certification
- Certifications: CE, EAC, RoHS; IP20 indoor-rated
- Included Accessories:
- 24 V 0.8 A power adapter

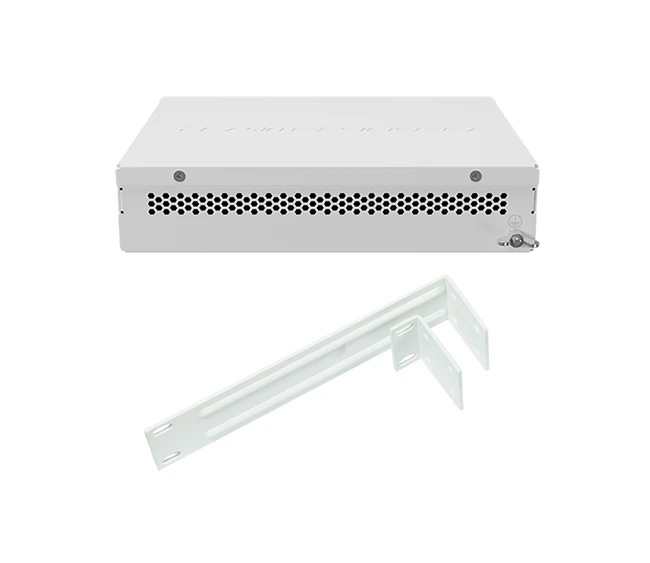

- Rack-mount ears (K‑48 set)
📊 Performance
- Switching Capacity: ~56 Gbps total
- Forwarding Rate: ~41.7 Mpps; 28 Gbps non‑blocking throughput
✅ Summary Table
| Feature | Specification |
|---|---|
| RJ45 Ports | 8 × Gigabit |
| SFP+ Ports | 2 × 10G |
| Switching Capacity | ~56 Gbps / ~41.7 Mpps |
| Power Input | 12–57 V via DC jack or PoE‑IN |
| Power Consumption | 5 W idle / 11 W max |
| Cooling | Passive, fanless |
| Management | SwOS web UI |
| Form Factor | 200 × 167 × 46 mm with rack ears |
The CSS610‑8G‑2S+IN offers robust 10 G uplink capability in a compact, cost-effective, and silent chassis perfect for SOHO, home labs, or small-edge deployments. Let me know if you’d like module compatibility info, VLAN setup guides, or comparisons to similar models! Datasheet
