Lenovo ThinkVision P24h-30 23.8" QHD Monitor

The Lenovo ThinkVision P24h-30 is a 23.8-inch QHD (2560×1440) professional display engineered for exceptional clarity, connectivity, and ergonomic comfort. Designed with business professionals and content creators in mind, this monitor combines USB-C single-cable convenience, Ethernet network capability, and full adjustability within a sleek Raven Black frame for a refined, space-efficient workspace.

Display and Design

This ThinkVision model features a 23.8-inch In-Plane Switching (IPS) display panel with Quad HD resolution (2560 × 1440), offering crisp visuals, vivid color accuracy, and expansive viewing angles. The 3-side NearEdgeless design ensures a clean, borderless look ideal for multi-monitor setups. Combined with ergonomic tilt, swivel, pivot, and height adjustment, it promotes superior comfort and productivity during extended work sessions.

Technical Specifications

• Model: Lenovo ThinkVision P24h-30
• Part Number: 63B3GAT6UK
• Display Size: 23.8 inches (60.45 cm)
• Panel Type: IPS (In-Plane Switching), LED backlight
• Resolution: 2560 × 1440 (QHD)
• Aspect Ratio: 16:9
• Brightness: 300 nits (Typical)
• Contrast Ratio: 1000:1 (Static)
• Response Time: 4 ms (Extreme Mode) / 6 ms (Normal)
• Refresh Rate: 100 Hz
• Viewing Angle: 178° (Horizontal) / 178° (Vertical)
• Color Gamut: 99% sRGB, 99% Rec.709, 95% DCI-P3
• Color Depth: 8-bit
• Color Support: 16.7 million colors
• Color Calibration: Factory calibrated (ΔE < 2)
• Surface Treatment: Anti-glare, 3H hardness
• Color: Raven Black

Connectivity Options

• Video Inputs:
  • 1 × HDMI 2.1 TMDS
  • 1 × DisplayPort 1.4 (Input)
  • 1 × DisplayPort 1.4 (Output, Daisy-chain support)
  • 1 × USB-C 3.2 Gen 1 (DP 1.4 Alt Mode, Data, Power Delivery up to 90W)
• Networking:
  • 1 × RJ45 (Ethernet port, 10M/100M/1000M)
• USB Hub Configuration:
  • 4 × USB 3.2 Gen 1 Type-A (1 port supports BC1.2 fast charging)
• Audio Output: 1 × 3.5 mm Audio Out
• Power Supply: Internal power supply (100–240V AC, 50/60 Hz)
• Power Consumption: 21W (Typical), <0.5W (Sleep Mode)

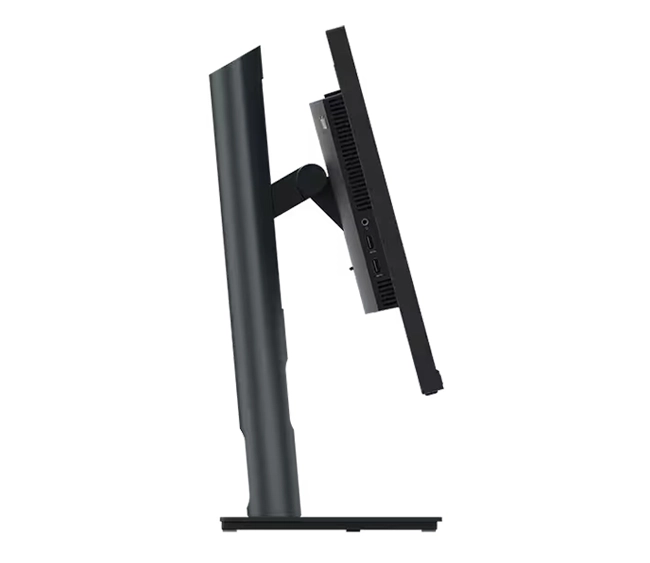

Ergonomics and Adjustability

The ThinkVision P24h-30 is designed for complete flexibility with a multi-functional ergonomic stand that supports:

• Height Adjustment: Up to 150 mm
• Tilt Adjustment: -5° to +35°
• Swivel: ±45°
• Pivot: ±90° (Portrait/Landscape rotation)
• VESA Mount: 100 × 100 mm compatible

Display Performance and Features

Equipped with factory color calibration, the P24h-30 ensures professional-grade color accuracy out of the box. The 100 Hz refresh rate and QHD resolution deliver smooth motion and superior image precision. Its USB-C single-cable solution provides video, data, and 90W power delivery — reducing cable clutter and enhancing workspace efficiency. Integrated RJ45 Ethernet offers wired network access directly through the monitor for seamless connectivity in docking setups.

Environmental and Compliance Standards

The Lenovo ThinkVision P24h-30 adheres to ENERGY STAR®, TCO Certified, and EPEAT® Gold standards. The monitor’s eco-conscious packaging is made from recyclable materials, and its low blue light certification promotes long-term eye comfort.

Key Features

• 23.8" QHD IPS display with factory-calibrated color accuracy
• 100 Hz refresh rate and 99% sRGB / 95% DCI-P3 color gamut
• USB-C single-cable connection with 90W power delivery
• RJ45 Ethernet port for direct network access
• HDMI 2.1, DisplayPort 1.4 In/Out, and 4× USB 3.2 Gen 1 ports
• Full ergonomic stand with tilt, swivel, pivot, and height adjustment
• Natural Low Blue Light and Eye Comfort-certified display
• Daisy-chain capability for multi-monitor setups

Meta Description

The Lenovo ThinkVision P24h-30 is a 23.8" QHD IPS professional monitor featuring USB-C 90W PD, HDMI 2.1, DisplayPort 1.4 In/Out, and RJ45 Ethernet. With full ergonomic adjustment, factory color calibration, and 100 Hz refresh rate, it’s built for precision and productivity in modern workspaces. Datasheet
