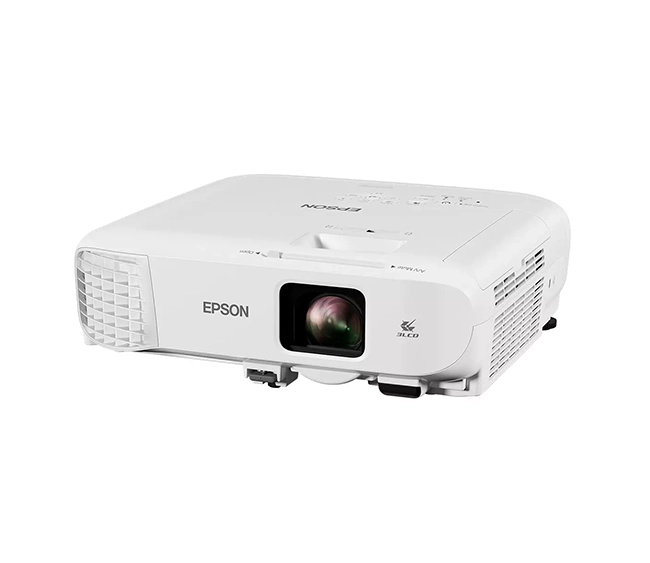

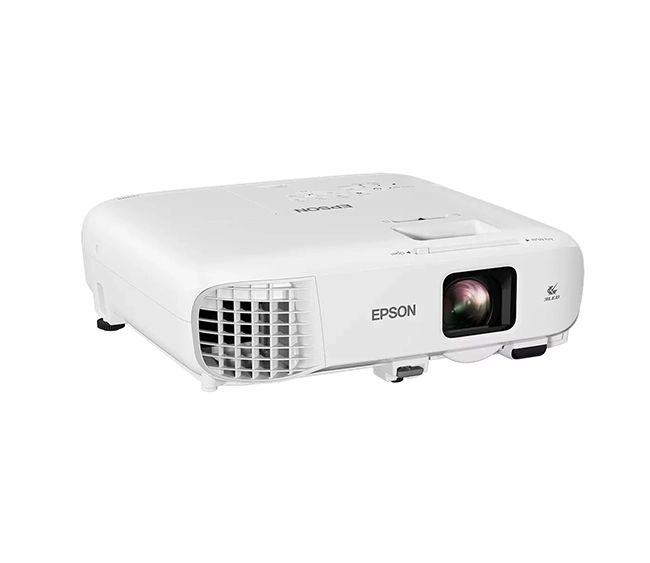

Epson EB-X49 3600 Lumens XGA Projector

The Epson EB-X49 3600 Lumens XGA Projector is a versatile and bright 3600 lumens XGA projector designed for classrooms, offices, and small meeting rooms. Featuring 3LCD projection technology, it delivers sharp images and vivid colors even in well-lit spaces. With flexible installation options, long lamp life, and multiple connectivity ports including HDMI, VGA, and USB, it’s a reliable solution for presentations, training, and collaborative environments.

---

Display Technology

• Projection System: 3LCD technology, RGB liquid crystal shutter
• Native Resolution: XGA (1024 × 768)
• Supported Resolutions: Up to WUXGA (1920 × 1200)
• Aspect Ratio: 4:3 native, 16:9 supported
• Brightness: 3600 lumens (color & white brightness)
• Contrast Ratio: 16,000:1
• Projection Size: 30" – 300" (diagonal)
• Throw Ratio: 1.44 – 1.95
• Zoom Ratio: 1.2x optical zoom
• Focus: Manual

---

Lamp & Lifespan

• Lamp Type: UHE 210W
• Lamp Life:
  • Normal Mode: Up to 6,000 hours
  • Eco Mode: Up to 12,000 hours

---

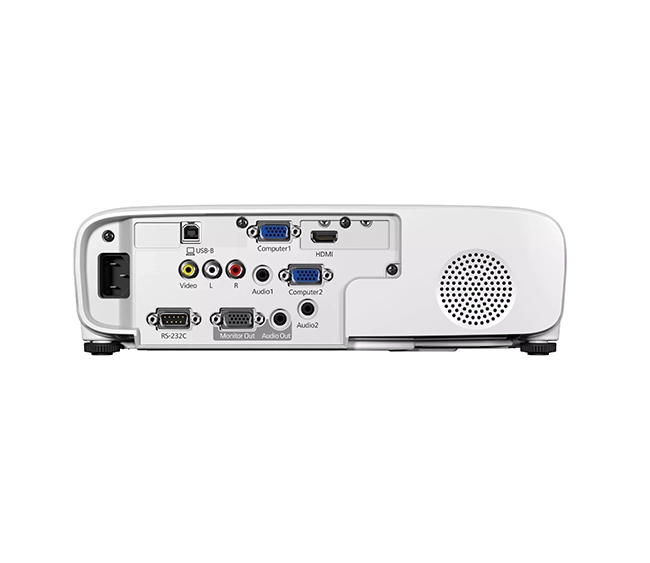

Connectivity

• HDMI: 1 × HDMI input (HDCP supported)
• VGA (D-Sub 15-pin): 2 inputs, 1 output
• USB Type-A: 1 × (USB memory, wireless module, DC out)
• USB Type-B: 1 × (USB display, mouse, and control)
• Composite Video: 1 × RCA (Yellow)
• Audio In: 2 × stereo mini jack, 1 × RCA (red/white)
• Audio Out: 1 × stereo mini jack
• RS-232C: 1 × D-sub 9-pin
• LAN (RJ-45): 1 × Ethernet port

---

Audio

• Built-in Speaker: 5W mono

---

Performance & Features

• Keystone Correction:
  • Vertical: ±30° (automatic/manual)
  • Horizontal: ±30° (manual)
• Color Reproduction: Up to 1.07 billion colors
• Projection Method: Front, Rear, Ceiling mount
• Noise Level:
  • Normal Mode: ~37 dB
  • Eco Mode: ~28 dB
• Wireless Projection: Optional with wireless LAN module

---

Physical Specifications

• Dimensions (W × D × H): 302 × 234 × 77 mm
• Weight: ~2.7 kg
• Color: White

---

Power & Efficiency

• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption:
  • Normal Mode: ~327 W
  • Eco Mode: ~225 W
  • Standby: <0.3 W

---

Warranty

• Projector Warranty: 2 years (varies by region)
• Lamp Warranty: 12 months or 750 hours (whichever comes first)

---

Typical Use Cases

• Education – Bright classroom projector with clear text and graphics
• Business – Perfect for offices and small meeting rooms
• Training & Seminars – Reliable for extended use with eco mode
• Portable Presentations – Lightweight design for easy mobility

---

Key Features

• 3600 lumens brightness for vivid projection in daylight
• XGA resolution (1024 × 768) with support up to WUXGA
• Long lamp life up to 12,000 hours in Eco Mode
• 3LCD technology for bright and accurate colors
• Flexible connectivity with HDMI, VGA, USB, LAN, and audio ports
• Built-in 5W speaker for presentations without external audio

---

Meta Description

Epson EB-X49 3600 Lumens XGA Projector with 3LCD technology, 1024×768 resolution, HDMI, VGA, USB, LAN connectivity, and 5W speaker. Long lamp life up to 12,000 hours, ideal for classrooms, offices, and business presentations. Datasheet
