Epson EB-W51 WXGA 3LCD 4000 Lumens Projector

The Epson EB-W51 WXGA 3LCD 4000 Lumens Projector is a high-brightness WXGA projector delivering 4000 lumens for crystal-clear presentations in classrooms, boardrooms, and home settings. With 3LCD technology, it ensures vivid color reproduction and sharp image quality. Its widescreen WXGA (1280 × 800) resolution supports modern widescreen content, making it perfect for business, education, and entertainment.

---

Display Technology

• Projection System: Epson 3LCD, RGB liquid crystal shutter
• Native Resolution: WXGA (1280 × 800)
• Supported Resolutions: VGA (640 × 480) up to WUXGA (1920 × 1200)
• Aspect Ratio: 16:10 native (supports 4:3 and 16:9)
• Brightness: 4000 lumens (color & white brightness)
• Contrast Ratio: 16,000:1
• Projection Size: 30" – 300" diagonal
• Throw Ratio: 1.49 – 1.64
• Zoom Ratio: 1.2x optical zoom
• Focus: Manual

---

Lamp & Lifespan

• Lamp Type: UHE 210W
• Lamp Life:
  • Normal Mode: Up to 6,000 hours
  • Eco Mode: Up to 12,000 hours

---

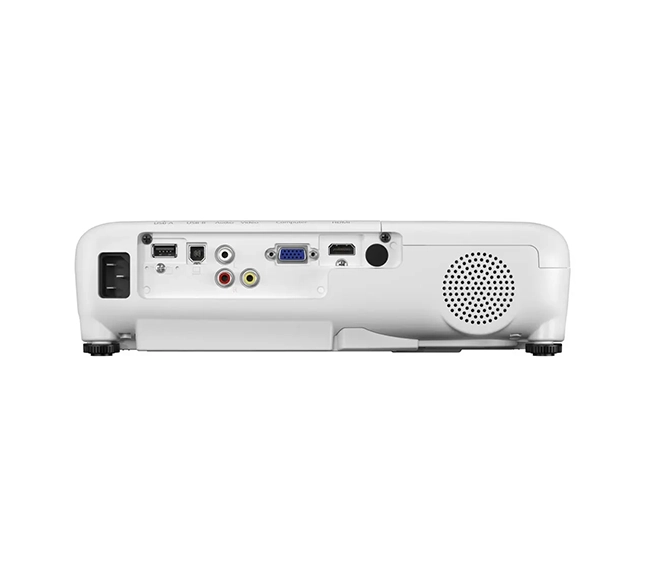

Connectivity

• HDMI: 1 × HDMI input (HDCP supported)
• VGA (D-sub 15 pin): 2 × input, 1 × output
• USB Type-A: 1 × (USB memory, wireless adapter, DC out)
• USB Type-B: 1 × (USB display, mouse, and control)
• Composite Video: 1 × RCA (Yellow)
• Audio In: 2 × stereo mini jack, 1 × RCA (red/white)
• Audio Out: 1 × stereo mini jack
• RS-232C: 1 × D-sub 9-pin
• LAN (RJ-45): Optional (via adapter)

---

Audio

• Built-in Speaker: 2W mono

---

Performance & Features

• Keystone Correction:
  • Vertical: ±30° (auto/manual)
  • Horizontal: ±30° (manual)
• Color Reproduction: Up to 1.07 billion colors
• Projection Method: Front, Rear, Ceiling mount
• Noise Level:
  • Normal Mode: ~37 dB
  • Eco Mode: ~28 dB
• Wireless Projection: Optional (via Epson wireless LAN module)

---

Physical Specifications

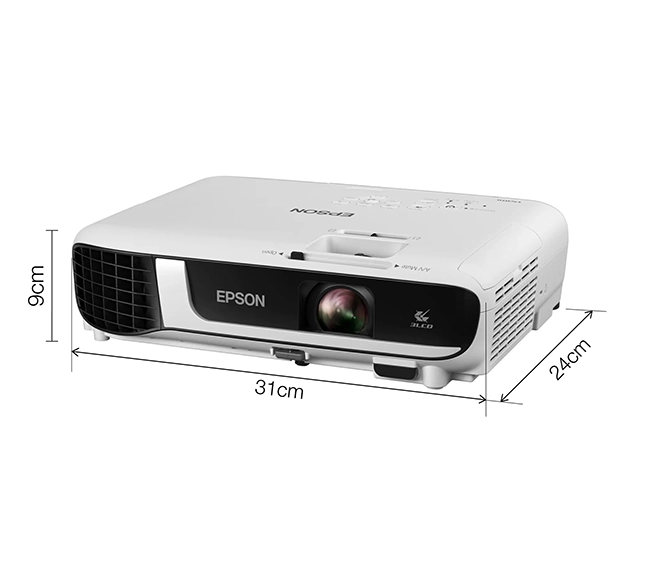

• Dimensions (W × D × H): 302 × 234 × 77 mm
• Weight: ~2.6 kg
• Color: White

---

Power & Efficiency

• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption:
  • Normal Mode: ~327 W
  • Eco Mode: ~225 W
  • Standby: <0.3 W

---

Warranty

• Projector Warranty: 2 years (varies by region)
• Lamp Warranty: 12 months or 750 hours (whichever comes first)

---

Typical Use Cases

• Education – Bright, widescreen projector for classrooms
• Business – Professional presentations with clear visuals
• Entertainment – Home movies, gaming, and sports events
• Portable Use – Compact design for mobile setups

---

Key Features

• 4000 lumens brightness for vivid projection in lit rooms
• WXGA 1280 × 800 resolution with widescreen support
• Epson 3LCD technology for vibrant and true-to-life colors
• Lamp life up to 12,000 hours in Eco mode
• Multiple connectivity options including HDMI, VGA, and USB
• Compact & lightweight design for easy portability

---
