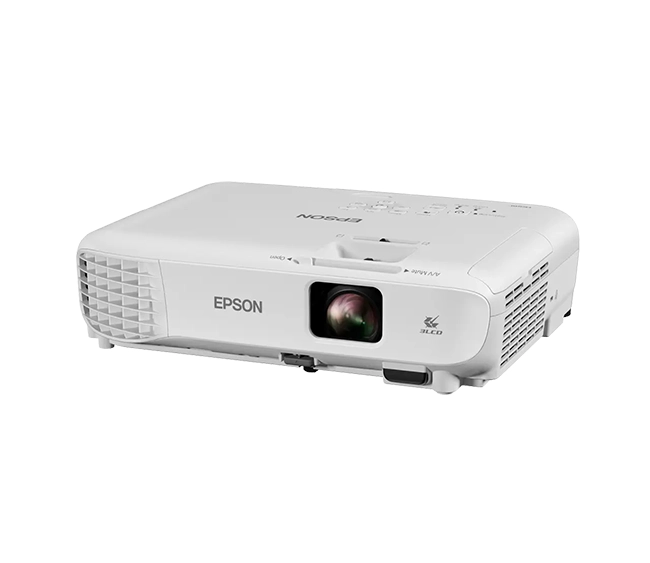

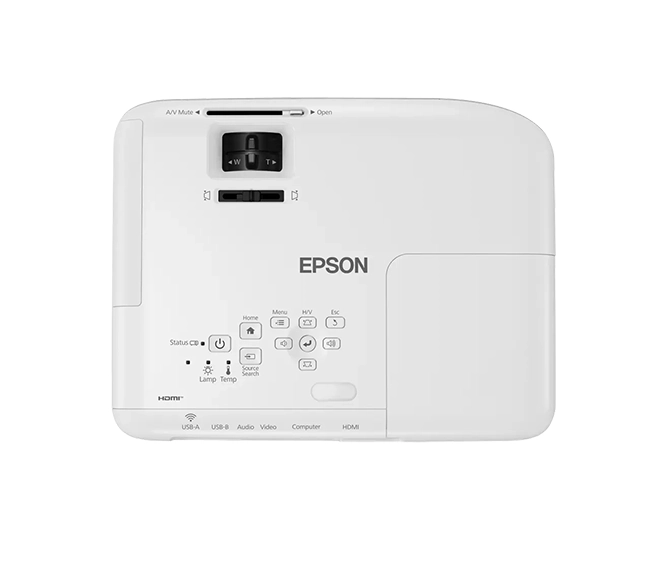

Epson EB-W06 3700 Lumens WXGA Projector

The Epson EB-W06 3700 Lumens WXGA Projector is a bright 3700 lumens WXGA 3LCD projector designed for classrooms, offices, and home entertainment. With widescreen WXGA resolution (1280 × 800), this projector delivers clear, vibrant, and sharp images even in well-lit rooms. It features flexible connectivity with HDMI, VGA, and USB, a long lamp life of up to 12,000 hours in Eco mode, and reliable Epson 3LCD technology for true-to-life colors.

---

Display Technology

• Projection System: Epson 3LCD, RGB liquid crystal shutter
• Native Resolution: WXGA (1280 × 800)
• Supported Resolutions: VGA (640×480) up to WUXGA (1920×1200)
• Aspect Ratio: 16:10 native, supports 4:3 and 16:9
• Brightness: 3700 lumens (color & white brightness)
• Contrast Ratio: 16,000:1
• Projection Size: 30" – 320" diagonal
• Throw Ratio: 1.49 – 1.64
• Zoom Ratio: 1.2x optical zoom
• Focus: Manual

---

Lamp & Lifespan

• Lamp Type: UHE 210W
• Lamp Life:
  • Normal Mode: Up to 6,000 hours
  • Eco Mode: Up to 12,000 hours

---

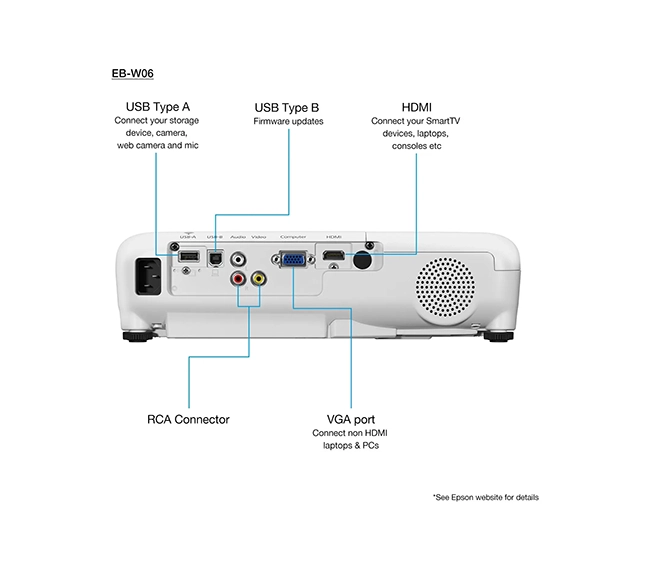

Connectivity

• HDMI: 1 × HDMI input (HDCP supported)
• VGA (D-sub 15 pin): 2 × input, 1 × output
• USB Type-A: 1 × (USB memory, wireless module, DC out)
• USB Type-B: 1 × (USB display, mouse, and control)
• Composite Video: 1 × RCA (Yellow)
• Audio In: 2 × stereo mini jack, 1 × RCA (red/white)
• Audio Out: 1 × stereo mini jack
• RS-232C: 1 × D-sub 9-pin
• LAN (RJ-45): Optional (via external adapter)

---

Audio

• Built-in Speaker: 2W mono

---

Performance & Features

• Keystone Correction:
  • Vertical: ±30° (automatic/manual)
  • Horizontal: ±30° (manual)
• Color Reproduction: Up to 1.07 billion colors
• Projection Method: Front, Rear, Ceiling mount
• Noise Level:
  • Normal Mode: ~37 dB
  • Eco Mode: ~28 dB
• Wireless Projection: Optional via Epson wireless LAN module

---

Physical Specifications

• Dimensions (W × D × H): 302 × 234 × 77 mm
• Weight: ~2.5 kg
• Color: White

---

Power & Efficiency

• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption:
  • Normal Mode: ~327 W
  • Eco Mode: ~225 W
  • Standby: <0.3 W

---

Warranty

• Projector Warranty: 2 years (varies by region)
• Lamp Warranty: 12 months or 750 hours (whichever comes first)

---

Typical Use Cases

• Education – Widescreen projector ideal for modern teaching content
• Business – Perfect for wide-format presentations in meeting rooms
• Entertainment – Great for movies, sports, and home projection
• Portable Use – Lightweight design for flexible installation

---

Key Features

• 3700 lumens brightness for clear projection in daylight
• WXGA resolution (1280 × 800) with widescreen 16:10 aspect ratio
• Epson 3LCD technology for vivid and accurate colors
• Long lamp life up to 12,000 hours in Eco mode
• Multiple connectivity options (HDMI, VGA, USB, Composite)
• Compact and lightweight for portability

---
