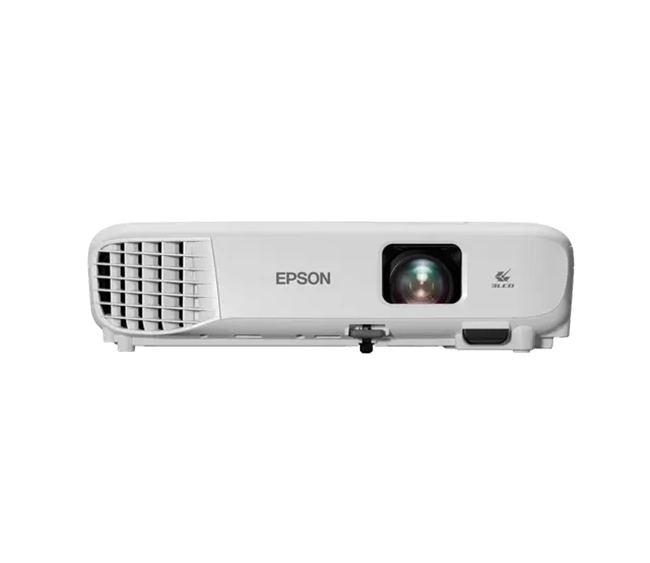

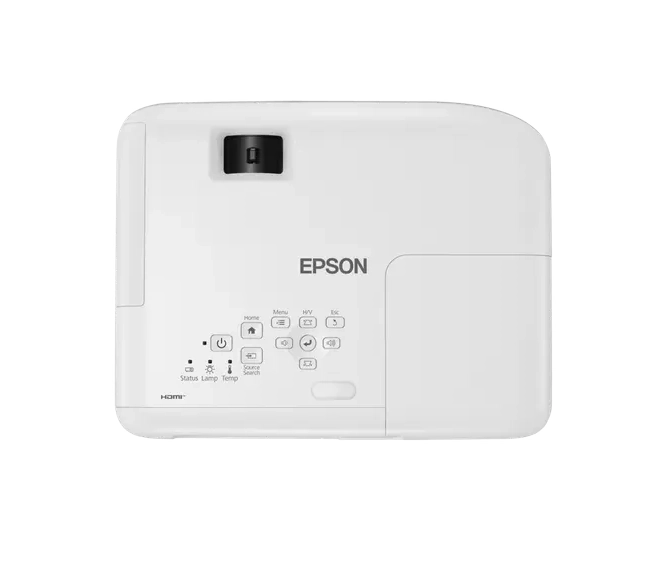

Epson EB-E12 XGA 3600 Lumens Projector

The Epson EB-E12 XGA 3600 Lumens Projector is designed for classrooms, offices, and small meeting spaces, delivering 3600 lumens brightness and XGA resolution (1024 × 768) for sharp and vibrant presentations. With 3LCD technology, it offers superior color accuracy, while its compact design, multiple connectivity options, and long lamp life make it a cost-effective and reliable projector for daily use.

---

Display Technology

• Projection System: 3LCD, 3-chip technology
• Native Resolution: XGA (1024 × 768)
• Supported Resolutions: Up to WUXGA (1920 × 1200)
• Aspect Ratio: 4:3 (native), 16:9 supported
• Brightness: 3600 lumens (color & white brightness)
• Contrast Ratio: 15,000:1
• Projection Size: 30" – 350" (diagonal)
• Throw Ratio: 1.44 – 1.95
• Zoom: 1.35x manual zoom
• Focus: Manual focus

---

Lamp & Lifespan

• Lamp Type: UHE 210W
• Lamp Life:
  • Normal Mode: Up to 6,000 hours
  • Eco Mode: Up to 12,000 hours

---

Connectivity

• HDMI: 1 × HDMI (HDCP supported)
• VGA: 2 × D-Sub (15-pin) inputs
• USB: 1 × USB Type-A, 1 × USB Type-B (for display & control)
• Composite Video: 1 × RCA (Yellow)
• Audio: 1 × Stereo mini jack input
• RS-232C: 1 × D-sub (9-pin)

---

Audio

• Built-in Speaker: 2W mono speaker

---

Performance & Features

• Keystone Correction:
  • Vertical: ±30° (automatic/manual)
  • Horizontal: ±30° (manual)
• Projection Method: Front, Rear, Ceiling mount
• Color Reproduction: Up to 1.07 billion colors
• Noise Level:
  • Normal: ~37 dB
  • Eco Mode: ~28 dB

---

Physical Specifications

• Dimensions (W × D × H): 302 × 237 × 82 mm
• Weight: ~2.4 kg
• Color: White

---

Power & Efficiency

• Power Supply: 100–240 V AC, 50/60 Hz
• Power Consumption:
  • Normal Mode: ~327 W
  • Eco Mode: ~225 W
  • Standby: <0.5 W

---

Warranty

• Projector Warranty: 2 Years (varies by region)
• Lamp Warranty: 12 months or 750 hours (whichever comes first)

---

Typical Use Cases

• Education – bright and clear classroom teaching aid
• Business Presentations – for offices and small meeting rooms
• Training Sessions – reliable and portable projection solution
• Basic Home Entertainment – movies and sports on a large screen

---

Key Features

• Bright 3600 lumens for crisp visuals in well-lit rooms
• Native XGA resolution with support up to WUXGA
• 3LCD technology for natural and vivid color projection
• Compact, lightweight, and easy to set up
• Long-lasting lamp life up to 12,000 hours (Eco Mode)

---
