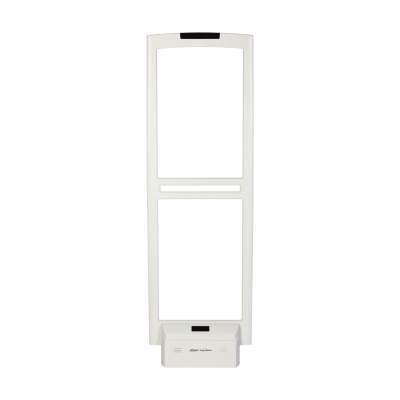

DHI-ISC-EAA2X-C208- P EAS AM Wide-body Network Antenna

Device Type: EAS AM Wide-body Network Antenna (Primary)
Model / Part Number: Dahua DHI-ISC-EAA2X-C208-P
Detection Technology: Acousto-Magnetic (AM), 58 kHz
Detection Distance: 1.8–2.0 m (adhesive labels) / 2.0–2.4 m (rigid tags)
Alarm Volume: Max 90 dB (Adjustable)
Antenna Type: Primary (Connects up to 2 Replica Antennas)
Network Interface: RJ45 (HTTP, TCP/IP)
CCTV Port: Output for camera linkage (up to 3 cameras)
Configuration: 1.3" OLED Display, On-board Buttons, Web Login
Software Support: DSS Pro, ConfigTool, WISS
Power Supply: 220–240 VAC @ 50/60 Hz
Internal Output: 24 VAC / 3 A
Maximum Power Consumption: 25 W
Shell Material: ABS (White)
Operating Temperature: 0°C to 45°C
Operating Humidity: 0% to 95% RH
Dimensions: 1580 mm × 500 mm × 125 mm
Gross Weight: 10 kg
Certifications: CE-LVD, CE-EMC, CE-RED, RoHS, REACH, ICNIRP
Key Specs: Dahua DHI-ISC-EAA2X-C208-P, EAS AM Wide-body Network Antenna, 58 kHz, 2.4 m Detection, 90 dB Alarm, Primary Antenna, Network & CCTV Linkage, OLED Display
Usage: Retail Loss Prevention, Supermarkets, Department Stores, Electronics Retail, and any facility requiring anti-theft protection with AM EAS systems
