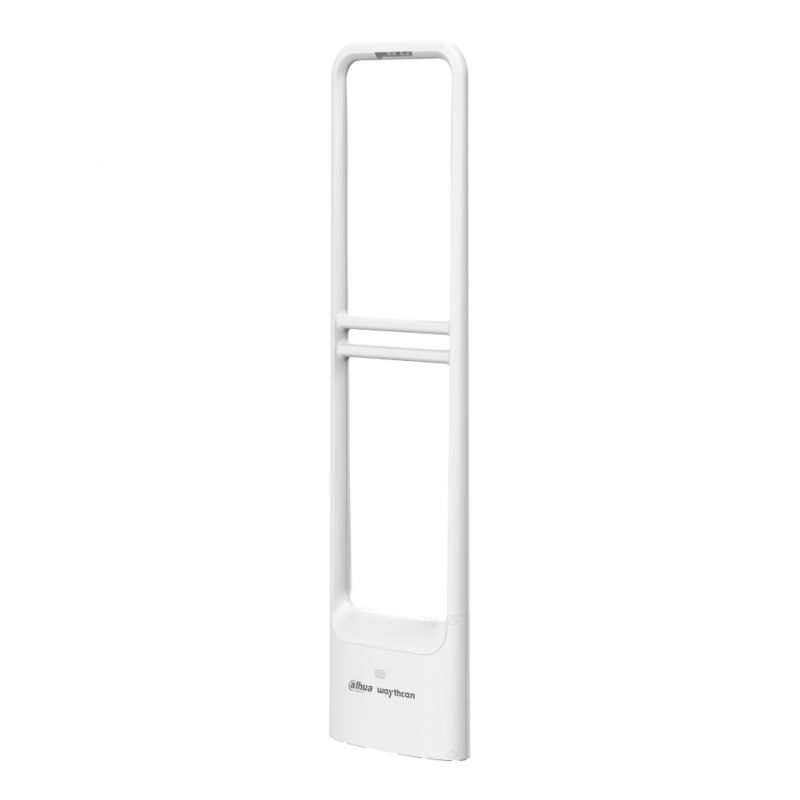

Device Type: AM EAS Replica Antenna Model / Part Number: DHI-ISC-EAA2X-C201-R Detection Technology: Acousto-Magnetic (AM), 58 kHz Detection Distance: 1.8–2.0 m (adhesive labels) / 2.0–2.4 m (rigid tags) Alarm Volume: Max 90 dB (Adjustable) Antenna Type: Replica (Requires Primary Antenna) Network Interface: RJ45 (HTTP, TCP/IP) CCTV Port: Output for camera linkage (up to 3 cameras) Configuration: On-board buttons/screen, Web login Power Supply: 24 VAC @ 50/60 Hz Maximum Power Consumption: 23 W Shell Material: ABS (White) Operating Temperature: 0°C to 45°C Operating Humidity: 0% to 95% RH Dimensions: 1580 mm × 500 mm × 125 mm Gross Weight: 8.5 kg Certifications: CE-LVD, CE-EMC, CE-RED, RoHS, REACH, ICNIRP Key Specs: Dahua DHI-ISC-EAA2X-C201-R, AM EAS Replica Antenna, 58 kHz, 2.4 m Detection, 90 dB Alarm, Requires Primary Antenna, Network & CCTV Linkage Usage: Retail Loss Prevention, Supermarkets, Department Stores, Electronics Retail, and any facility requiring anti-theft protection with AM EAS systems
