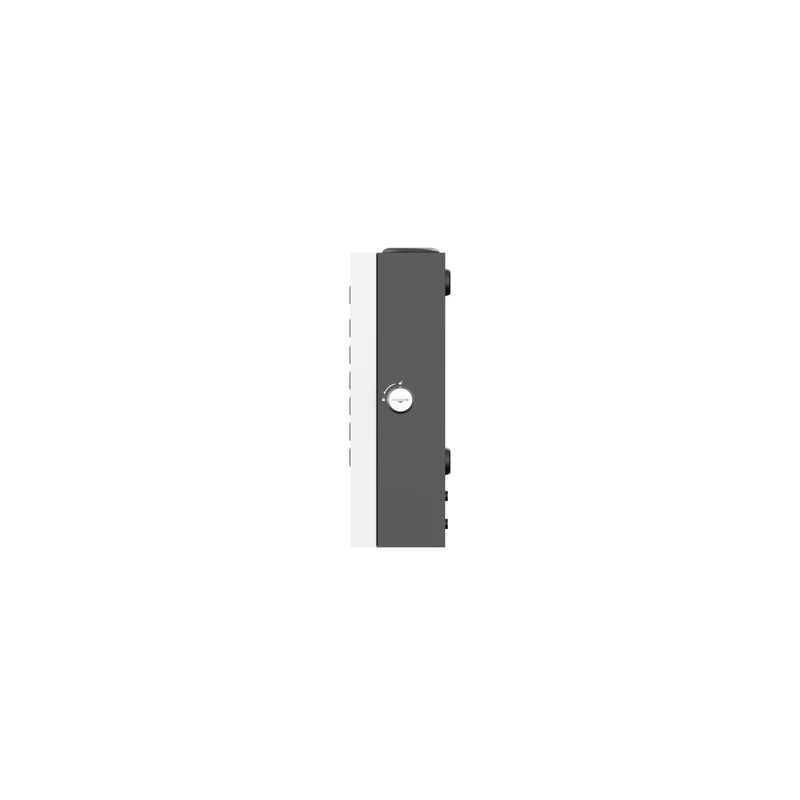

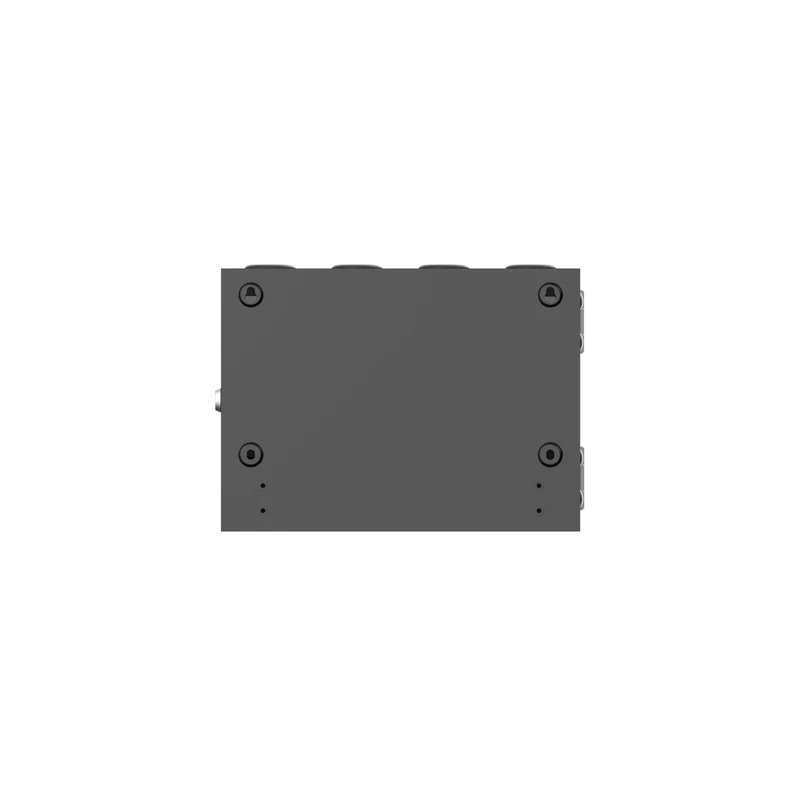

DHI-HY-C102-8 Conventional Fire Alarm Control Panel - 8 zones

Device Type: Conventional Fire Alarm Control Panel
Model / Part Number: Dahua DHI-HY-C102-8
Number of Zones: 8 Zones
Zone Capacity: 25 Detectors per Zone
Main Power: AC 90–240V, 50/60Hz
Backup Power: 2 × 12V/2.5Ah Lead-Acid Batteries
Output Current: 2A
Sounder Output: Fault: 50dB / Alarm: 60dB
Fire Bell Output: DC 28V / 500mA
Interfaces: Ethernet, RS-485
Protection Grade: IP30
Operating Temperature: –10°C to +50°C
Dimensions: 310.0 mm × 73.0 mm × 227.0 mm
Weight: 3.5 kg (5 kg with Batteries)
Compliance Standard: EN54-2, EN54-4
Key Specs: Dahua DHI-HY-C102-8, Conventional Fire Alarm Control Panel, 8 Zones, 200 Detector Capacity, Ethernet & RS-485, 4 Dry Contacts, EN54-2/4 Certified
Usage: Hotels, Offices, Factories, Warehouses, Retail Spaces, and Small to Medium-Sized Commercial Facilities
