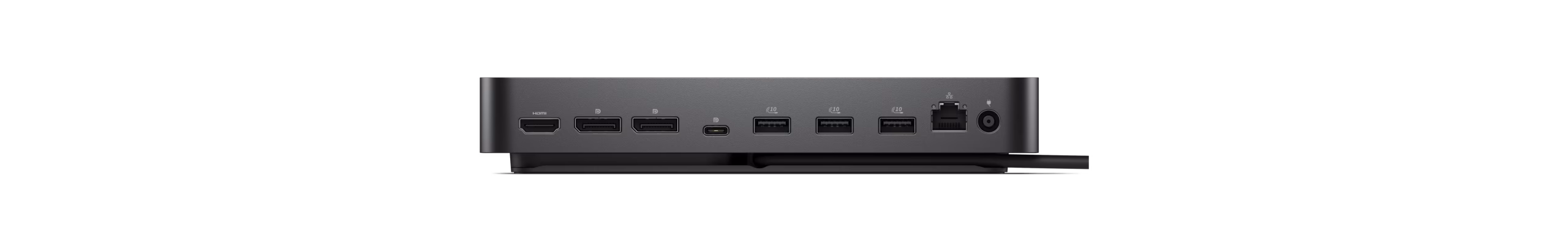

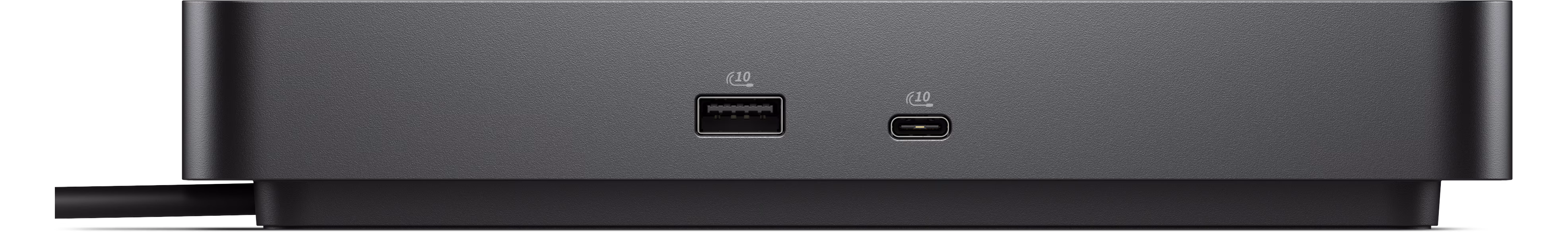

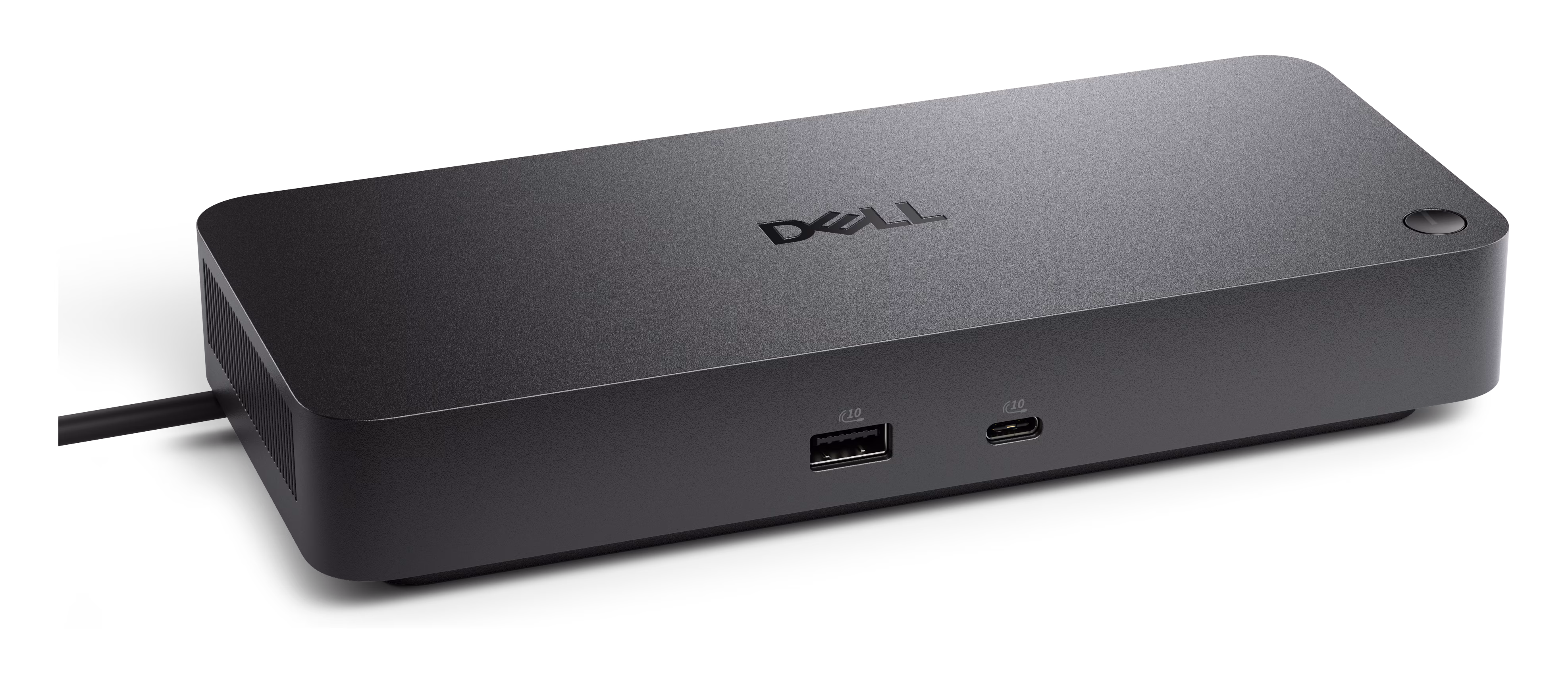

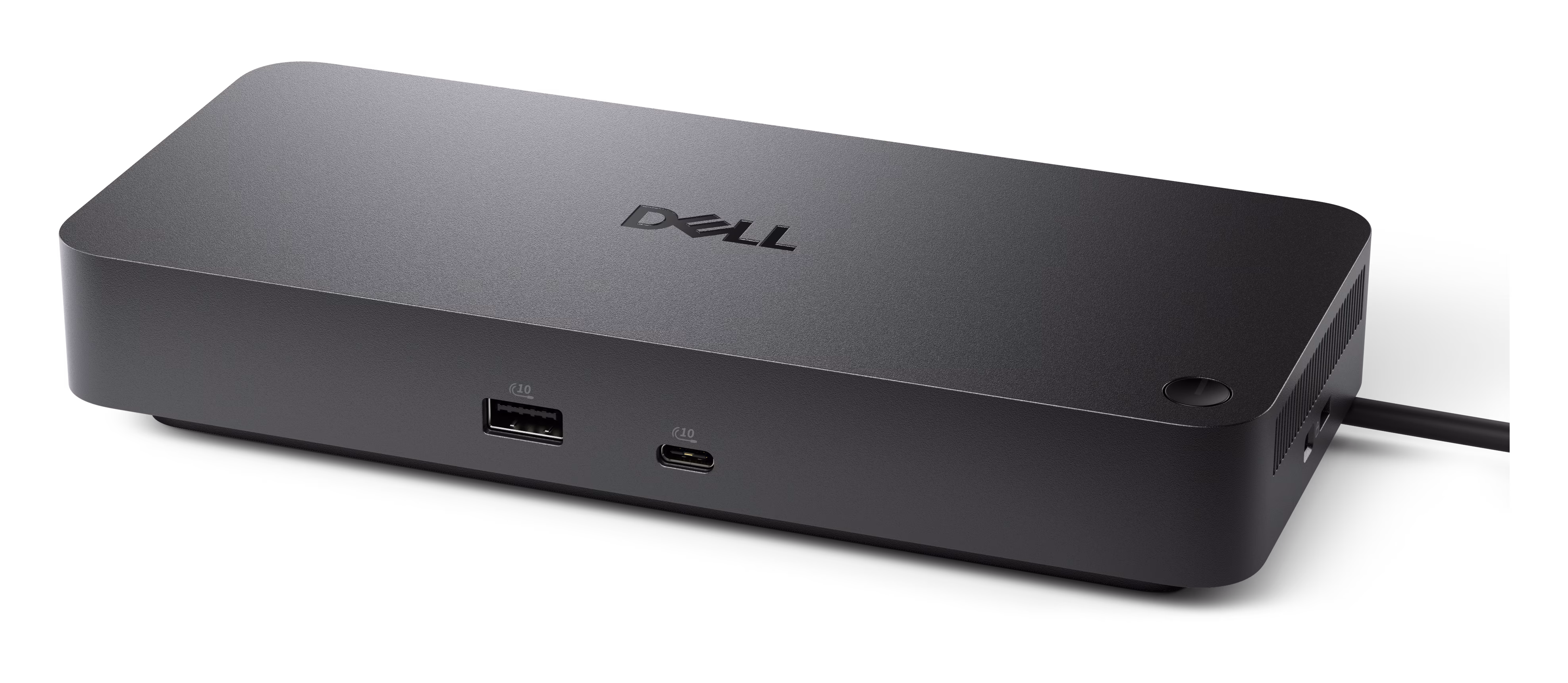

Dell Docking Station WD25 130W USB-C Hub - Black

Datasheet

Short Description

The Dell Pro Dock WD25 is a high-performance USB-C docking station designed to transform your laptop into a powerful, multi-monitor workstation. Featuring a 130W power adapter that delivers up to 100W of power to Dell laptops and supporting up to four 4K displays, this dock offers exceptional connectivity for professionals seeking a clutter-free, productive workspace .

Key Sections

Powerful 130W Power Adapter and Laptop Charging

The WD25 docking station comes with a 130W power adapter, ensuring your laptop stays charged and ready while connected. It delivers up to 100W of power to Dell systems and 96W to non-Dell systems, providing efficient and reliable charging for compatible devices . This robust power delivery eliminates the need for a separate laptop charger, keeping your desk organized and your battery topped up.

Extensive Multi-Display Connectivity

The docking station supports simultaneous connections to up to four external monitors, making it ideal for data-intensive professions such as finance, software development, and creative design. It offers a variety of video output ports, including two DisplayPort 1.4 ports, one HDMI 2.1 port, and a multifunction USB-C port with DisplayPort 1.4 support . This setup enables high-resolution output of up to 6K on a single display, 5K on dual displays, or 4K on quad WQHD (3440 x 1440) displays at 60Hz .

High-Speed Data and Networking Ports

The WD25 is equipped with a comprehensive array of ports for all your peripherals. It features four USB-A 3.2 Gen 2 ports and two USB-C 3.2 Gen 2 ports, all offering data transfer speeds of up to 10 Gbps. For networking, the dock includes an RJ45 Ethernet port with 2.5 GbE support, providing a fast and stable wired internet connection .

Advanced Enterprise Features and Security

Built for business use, the dock includes several enterprise-grade features for seamless IT management. It supports MAC Address Pass-Through, PXE Boot, and Wake-on-LAN, enabling efficient remote system management and deployment . Additionally, Kernel Direct Memory Access (DMA) protection helps safeguard the host system from potential security threats, making it ideal for corporate and government environments . A security lock slot is also provided for physical security of the dock itself.

Broad Compatibility and Easy Setup

The Dell Pro Dock WD25 is compatible with a wide range of operating systems, including Windows 10, Windows 11, Ubuntu, Red Hat Enterprise Linux, and ChromeOS . It connects to your laptop via a single integrated USB-C cable, providing a simple and efficient way to attach all your devices and displays to your laptop . This plug-and-play functionality streamlines your workflow, allowing for quick transitions between office and remote work.

Core Features

• Consequently, the 130W power adapter with up to 100W power delivery keeps your laptop charged while reducing cable clutter.

• In addition, the extensive multi-display support, including 2x DP, HDMI, and USB-C, enables high-resolution productivity across up to four screens.

• Furthermore, the 2.5 GbE Ethernet port and multiple 10 Gbps USB ports provide fast, reliable connectivity for all peripherals and networks.

• Specifically, enterprise-grade features like MAC address pass-through and PXE boot simplify IT management and deployment.

• Ultimately, the broad OS compatibility and single-cable connection make it a versatile and convenient solution for any workspace.

Technical Specifications Summary

• Model: Dell Pro Dock WD25 (210-BRMC)

• Power Adapter: 130W

• Power Delivery: Up to 100W (Dell systems), 96W (non-Dell systems)

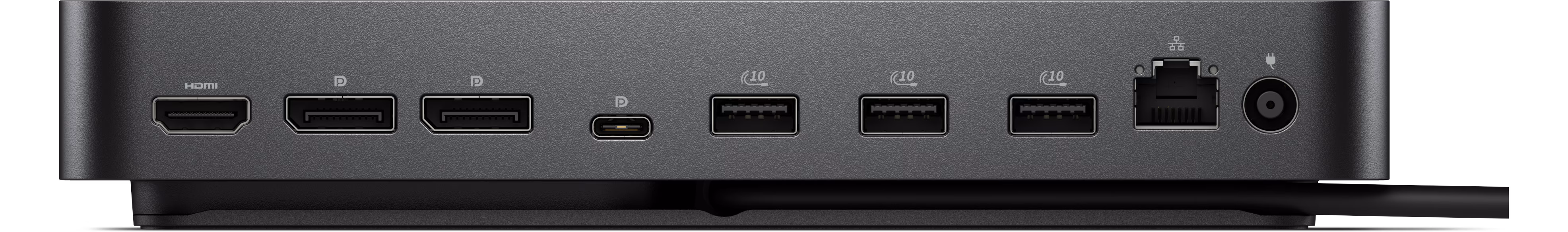

• Video Ports: 2 x DisplayPort 1.4, 1 x HDMI 2.1, 1 x USB-C 3.2 Gen 2 (DisplayPort 1.4)

• Data Ports: 4 x USB-A 3.2 Gen 2, 1 x USB-C 3.2 Gen 2

• Network: 1 x RJ45 Ethernet (2.5 GbE)

• Host Interface: USB-C 3.2 Gen 2 (integrated cable)

• Max Resolution Support: 6K (single), 5K (dual), 4K (quad WQHD)

• Supported Operating Systems: Windows 10, 11, Ubuntu, Red Hat Enterprise Linux, ChromeOS

• Dimensions (WxDxH): 205 x 90 x 35.2 mm

• Weight: Approximately 550 g

• Warranty: 3-Year Limited Hardware Warranty with Advanced Exchange
