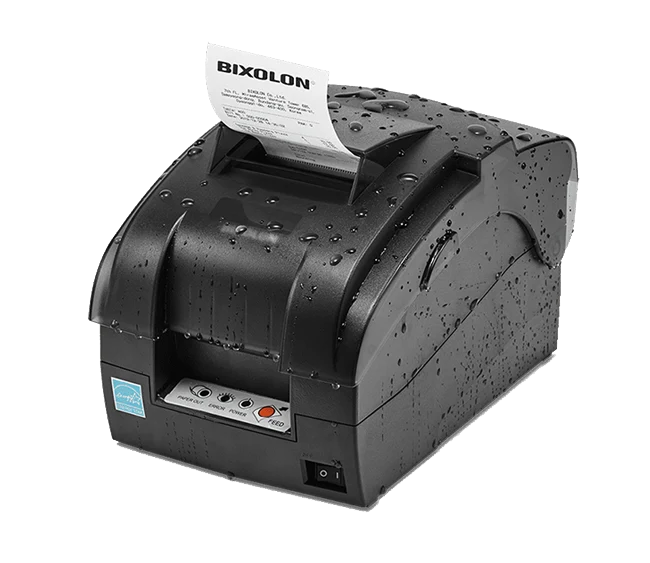

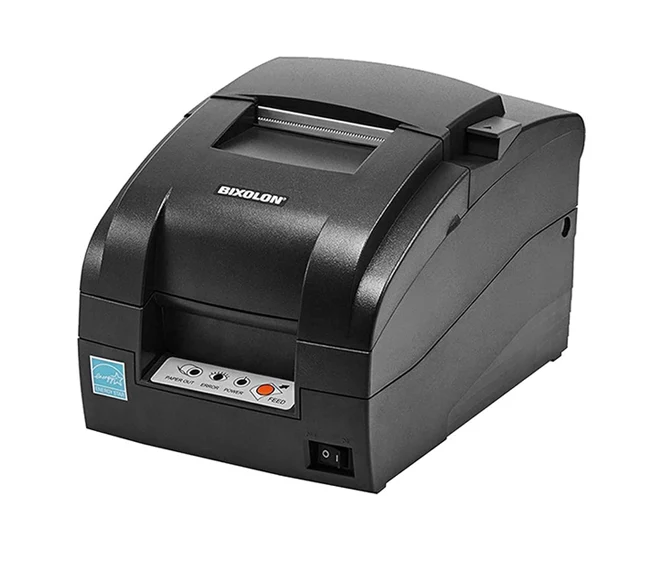

Bixolon SRP 275III Impact/Dot matrix

The Bixolon SRP-275III is a high-performance 3-inch (80mm) impact dot matrix receipt printer, ideal for environments such as kitchens, retail counters, and hospitality settings. Below are its key specifications

---

🖨️ Print Characteristics

• Print Method: 9-pin Serial Dot Matrix

• Print Speed: Up to 5.1 lines per second (at 40 columns), which is 8.5% faster than competitive models

• Print Resolution: 80 dpi (Horizontal), 144 dpi (Vertical)

• Print Width: Up to 63.5 mm

• Two-Color Printing: Supports black and red printing for highlighting special offers

---

📄 Media Handling

• Media Type: Receipt

• Media Width: 76.5 mm

• Roll Diameter: Up to 83 mm

• Media Thickness: 0.06 to 0.085 mm

• Paper Loading: Easy drop-in loading

• Sensors: Paper End, Paper Near End, Wall Mounting Paper Near End, Rear Cover Open, Black Mark

---

⚙️ Performance & Reliability

• Reliability: Rated for up to 18 million lines

• Auto Cutter: Optional, rated for 1.5 million cuts

• Memory:

  • NV Image Memory: 256 Kbytes (Mono)

  • Receive Buffer: 64 Kbytes

  • User Define Buffer: 64 Kbytes

• Emulation: BXL / POS

---

🔌 Interfaces & Connectivity

• Interface Options:

  • USB V2.0 FS + Serial + Ethernet (DHCP enabled)

  • USB V2.0 FS + Parallel

  • USB V2.0 FS + Serial

• Drawer Port: 2 ports (via Y-type adapter)

---

🧩 Design & Usability

• Features:

  • Anti-jam technology

  • Internal kitchen buzzer & built-in SMPS

  • Simply drop-in paper loading

  • Stand-alone and wall-mount options

---

📐 Physical & Electrical

• Dimensions (W x D x H): 160 x 239 x 157 mm (6.29 x 9.40 x 6.18 inches)

• Weight: 2.4 kg (5.29 lbs.) for model A, 2.5 kg (5.51 lbs.) for model C

• Power Supply: External power supply housed internally (Adaptor 24V/2.5A), 50/60Hz

• Energy Certification: EnergyStar Certified

---
